SmartPAC 2 User Manual 1126700
Initialization Mode 4-11
This item, which appears on the Main Initialization Menu only if your SmartPAC 2 is
equipped with ProCamPAC, allows you to assign descriptive names to each of your cam
channels. You can name up to 16 channels, depending on your SmartPAC 2 configuration
(i.e., 8-channel or 16-channel ProCamPAC). Do the following to assign cam channel names:
1. Select SELECT CAM NAMES on the Main Initialization Menu. The Cam Channel Name
Menu, shown in Figure 4-8, displays. The first time you access this screen, all channels
are named “UNNAMED.”
2. Select a channel. The screen shown in Figure 4-9 displays.

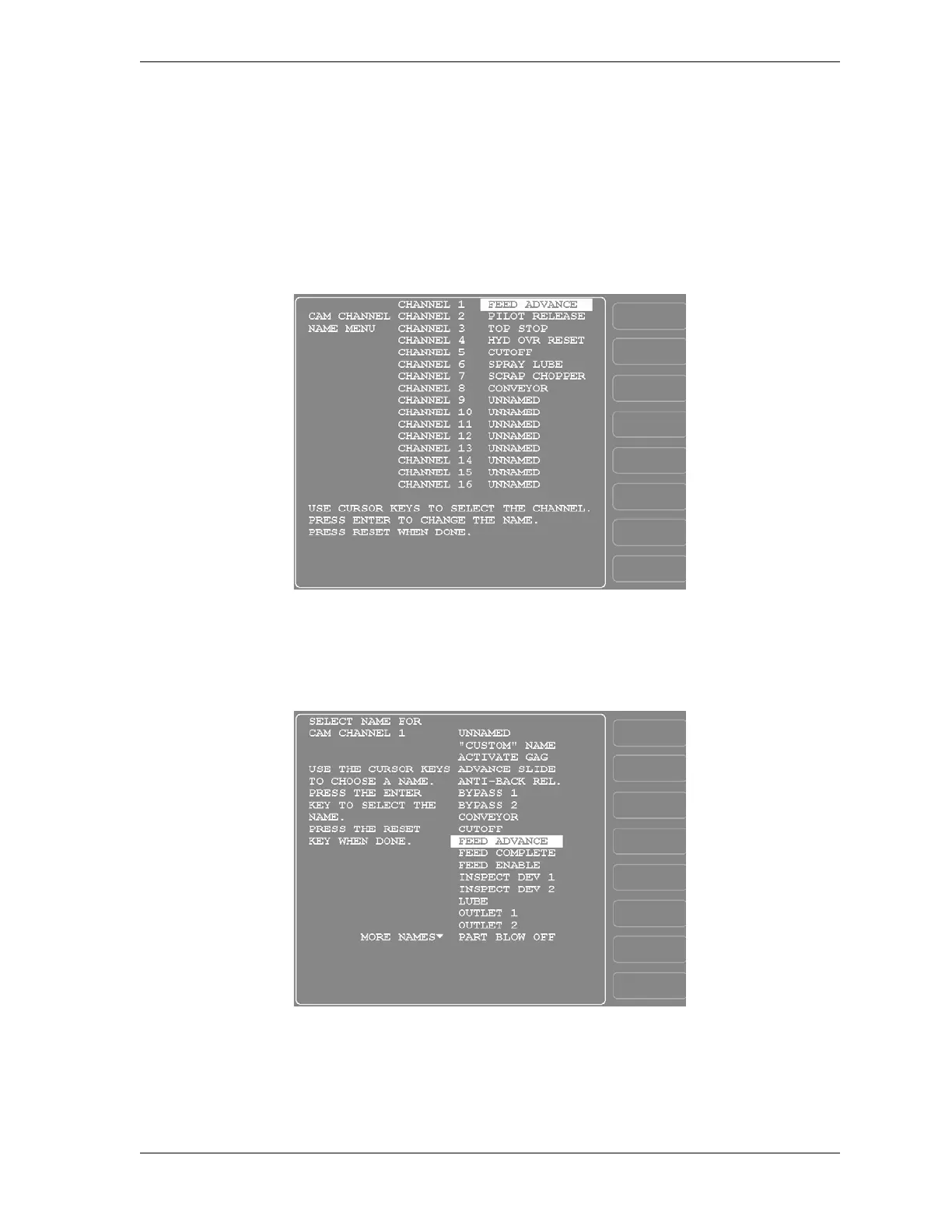

Figure 4-8. Cam Channel Name Menu
Your display may look different.
Figure 4-9. Cam Channel Name Selection Screen
