1126700 SmartPAC 2 User Manual
6-2 Run Mode
Entering and Exiting Run Mode
Follow the instructions shown in Table 6-1 to enter and exit Run mode. See Figure 3-27,
page 3-21 for help in navigating in Run mode.
Loading a Tool
A tool must be loaded before SmartPAC 2 will allow the press to run. If you attempt to switch
from Initialization or Program mode to Run mode with no tool loaded, the error message
shown in Figure 6-2 displays.
To respond to this error, do the following:
1. Turn the Program/Run key to PROG.
2. On the Main Program Menu, press RESET to clear the message.
3. Load a tool (see Loading a Tool, page 5-5).
SELECT = HIGHLIGHT + ENTER
When this manual instructs you to select an item, you should highlight the item and press ENTER.
Load a tool number before entering Run mode (see next section).
Table 6-1. Instructions for Entering and Exiting Run Mode
To Enter Run Mode To Exit Run Mode
From Program mode:
Turn the Program/Run key to RUN.*
To switch to Program mode:
Turn the Program/Run key to PROG.*
* If you turn the key and nothing happens, press RESET repeatedly until SmartPAC 2 changes modes. Make sure SmartPAC
2 is in the Main (or top) menu for the mode it is in before you turn the Program/Run key.
If SmartPAC 2 is not in a top-
level menu
, press RESET repeatedly until the Main menu appears.
For help with a Run mode screen, press the HELP key when that screen is displayed.

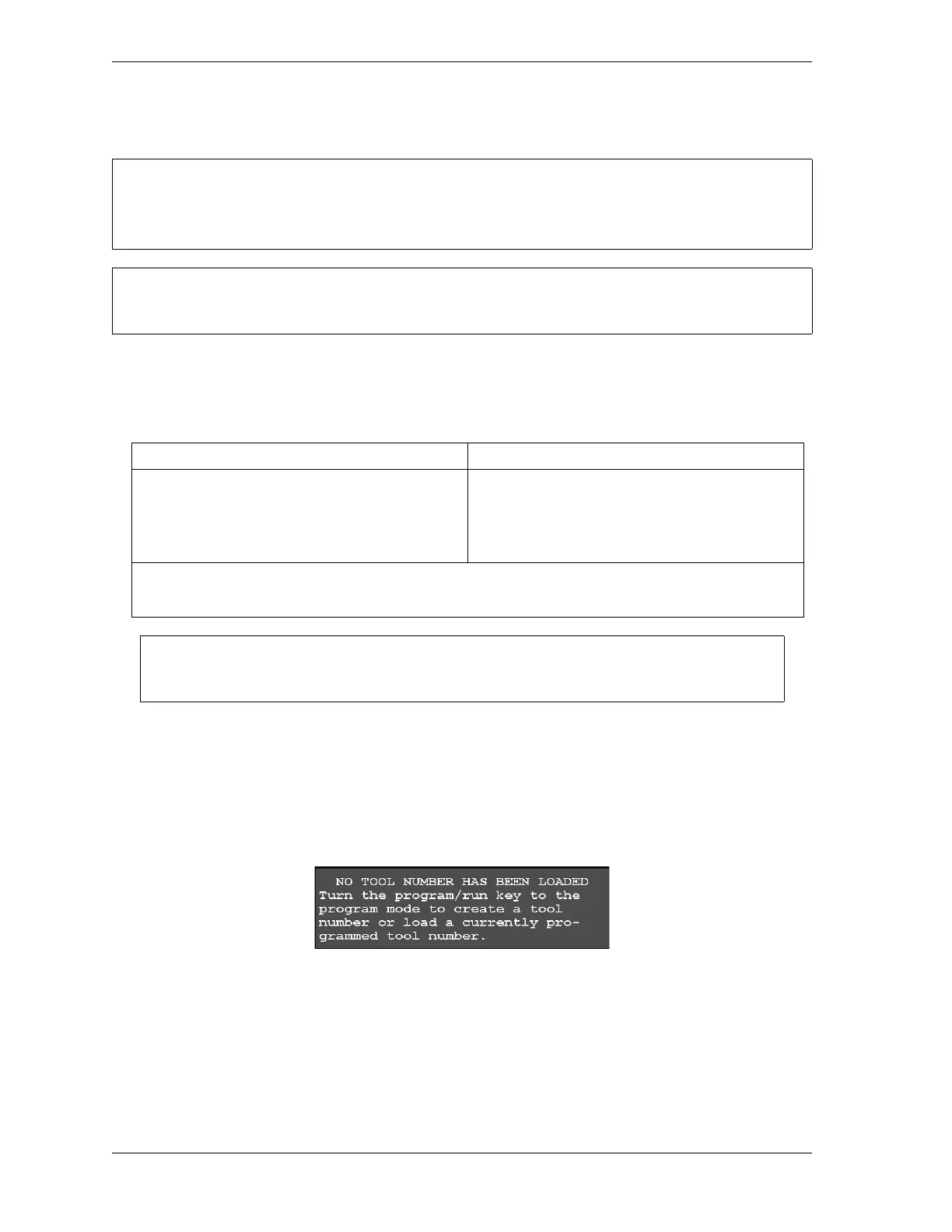

Figure 6-2. No Tool Loaded Warning Window
