SmartPAC 2 User Manual 1126700
Program Mode 5-39
Instructions for programming cam channels using each of the program types shown on the
Cam Channel Program Type Menu are provided in the following sections.
Making an ON/OFF Setting
The PROGRAM ON/OFF ANGLES item on the Cam Channel Program Type Menu enables
you to program the crankshaft angles at which a selected cam channel turns on and off. You
can program up to four on/off sequences per stroke. To make a single on/off setting for a
selected cam channel, perform the following steps (to make multiple on/off settings, see
Setting Multiple ON/OFF Cycles, page 5-40):
1. Select PROGRAM ON/OFF ANGLES on the Cam Channel Program Type Menu. The
Cam Channel On/Off Program screen, shown in Figure 5-46, displays.

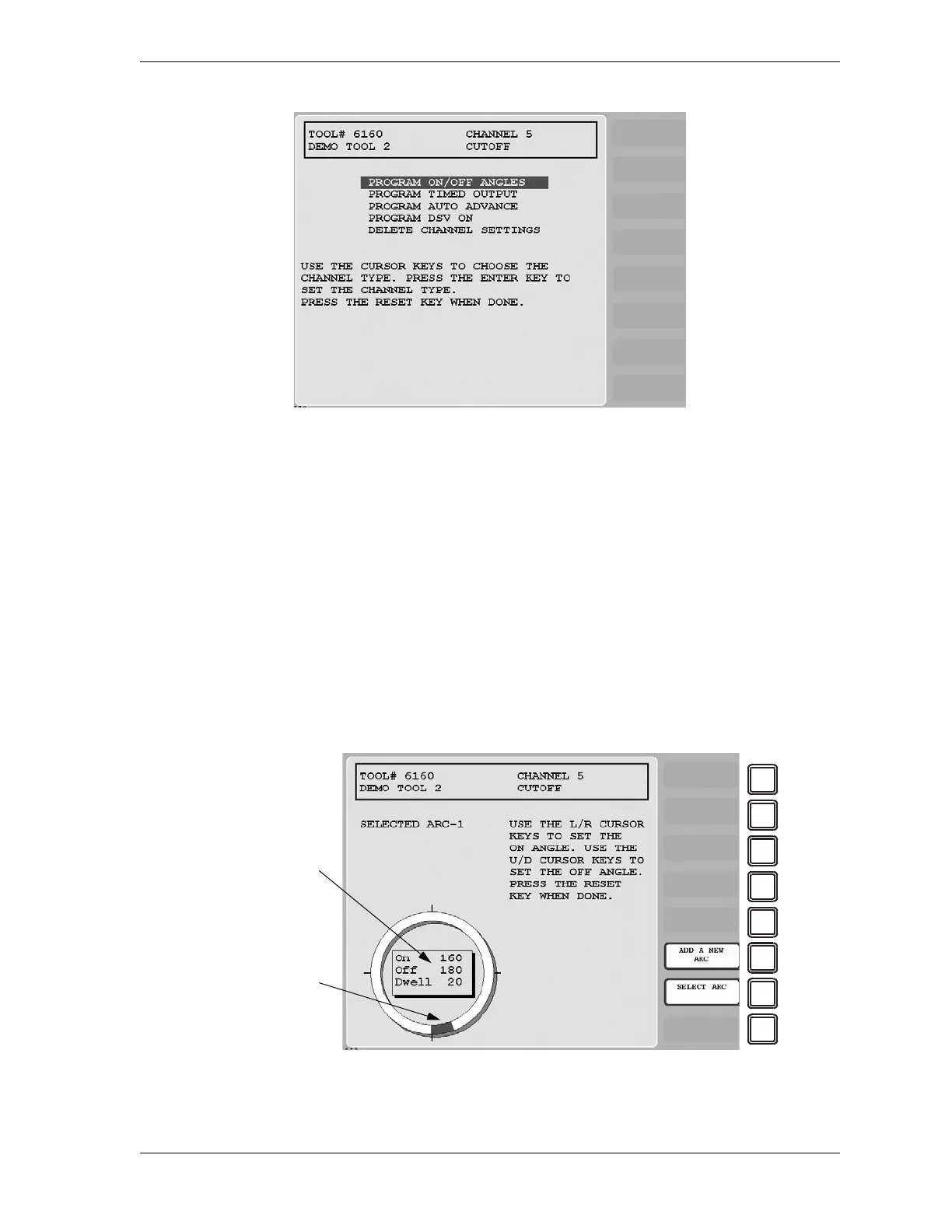

Figure 5-45. Cam Channel Program Type Menu
Figure 5-46. Cam Channel On/Off Program Screen
Highlighted arc
shows “dwell”
of cam On signal
Cam On and Off
angles
