Xerox DocuCentre SC2020

Problem Solving
Xerox
®
DocuCentre
®
SC2020
User Guide
290

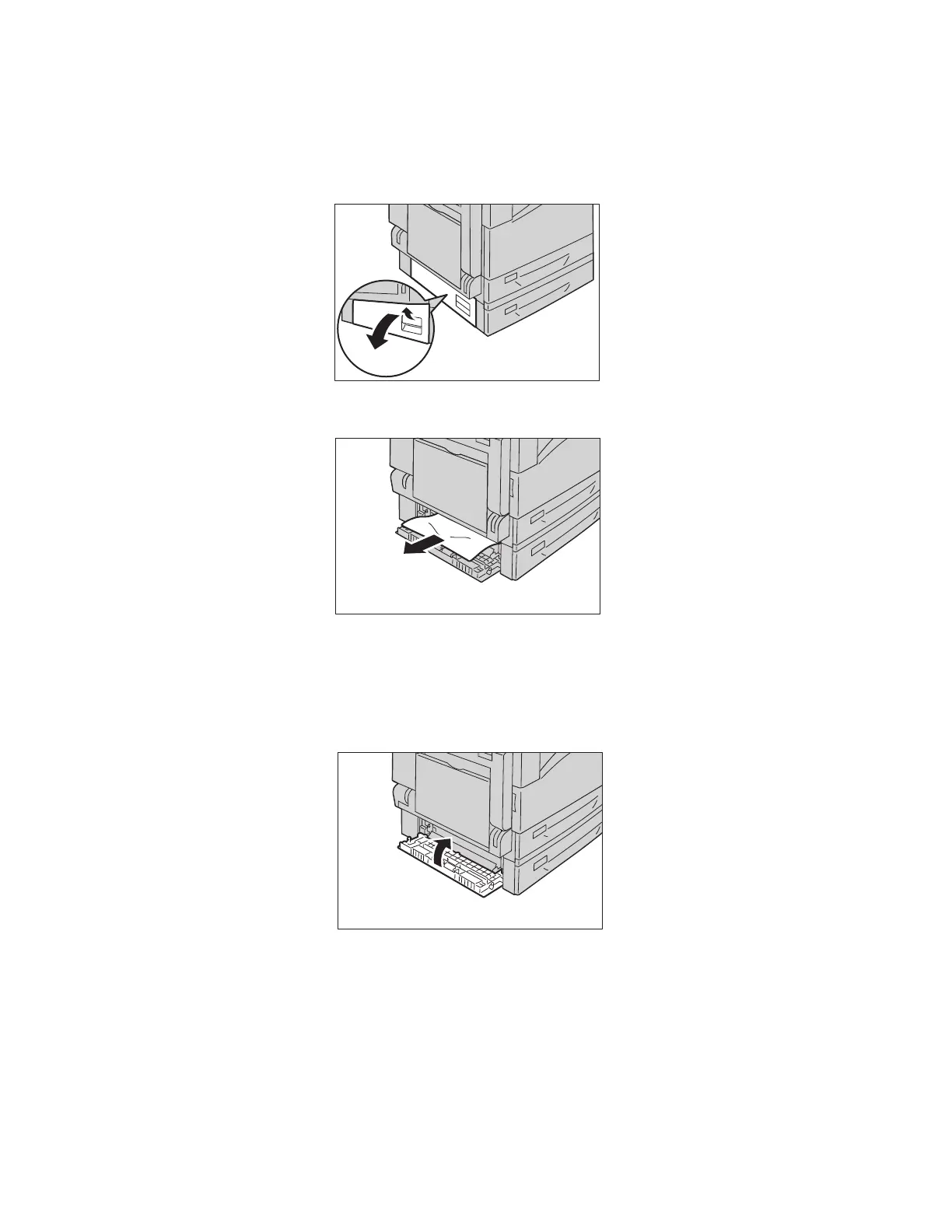

Paper Jam in Left Side Cover [B]
Follow the steps below to clear paper jams inside the device's left side cover [B].
1. Pull the release lever, and slowly open the left side cover [B].
2. Remove the jammed paper.
Notes:
•
The paper may be jammed in the upper part where it is difficult to see. Check thoroughly for
jammed paper.
• If the paper tears, check to make sure there are no remaining shreds in the device.
3. Close the left side cover [B] gently.
Paper Jams in Trays 1 and 2
Follow the steps below to clear paper jams in Trays 1 and 2.
1. Remove the jammed paper by referring to the following:
–Tray 1:
Paper Jam in Left Side Cover [A] on page 288
