Xerox Phaser 7760 - Page 104

January 2010
2-68
Phaser 7760 Color Laser Printer
007-115
Revised
Status Indicator RAP’s

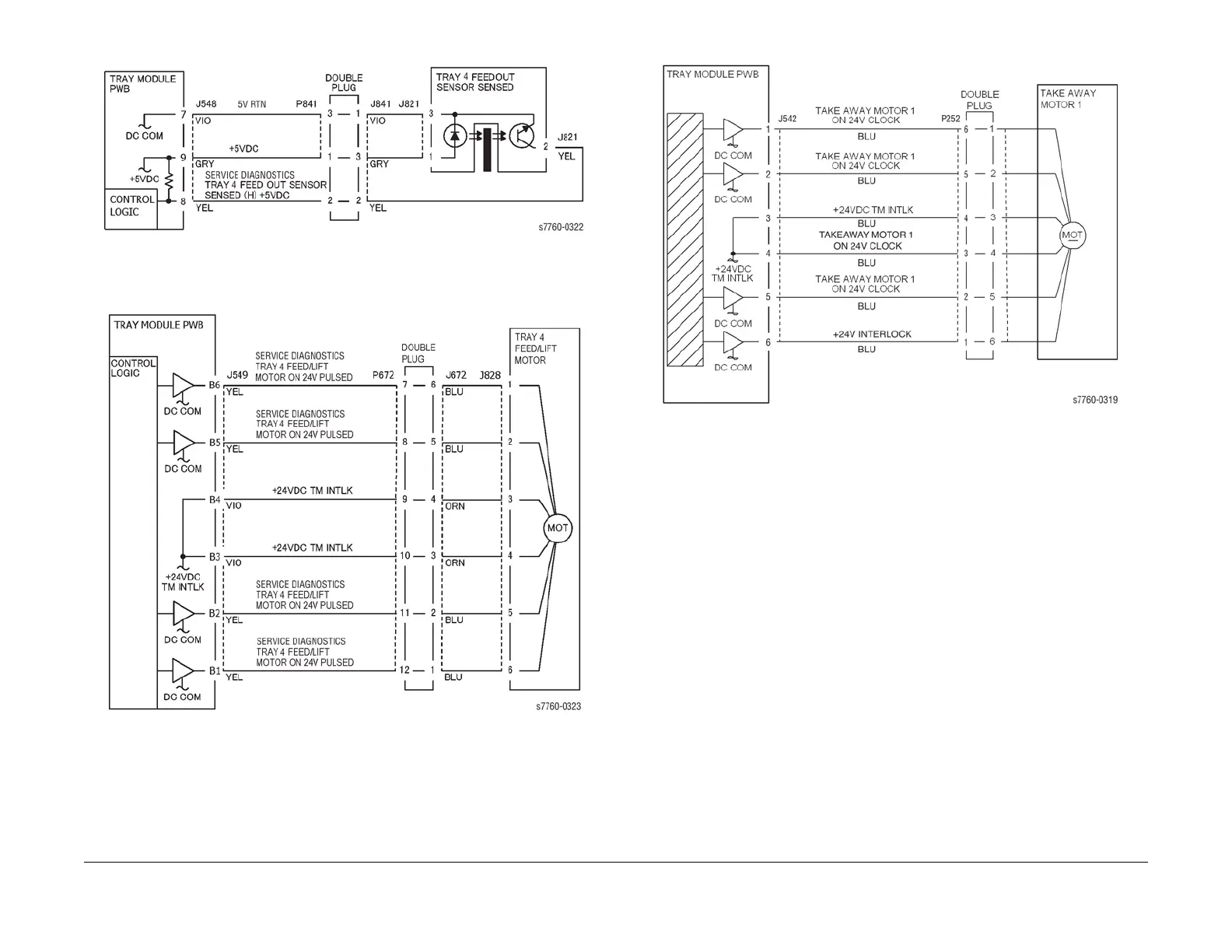

Figure 1 007-115 Tray 4 Feedout Sensor
Figure 2 007-115 Tray 4 Feed/Lift Motor
Figure 3 007-115 Takeaway Motor 1
