January 2010
2-69
Phaser 7760 Color Laser Printer
007-117
Status Indicator RAP’s
Revised
007-117 Tray 4 Misfeed (3TM)
The Tray 4 Feedout Sensor does not detect paper after feeding from Tray 4.
Initial Actions
Check condition and specification of paper in Tray 4.
Check for intermittent misfeeds ensure paper type selection is correct (open tray, select
Change Description).
Check the paper path for obstructions.
Check for wear and clean the Tray 4 Feeder Roll, Takeaway Roll, and the Pinch Roll.
Procedure
Open the Left Cover and cheat the Left Cover Interlock Switch (PL 15.10). Enter Service Diag-
nostics Menu: Printer Menu > Troubleshooting > Service Tools > Printer Status Page >
hold the Up and Down buttons simultaneously > Run Service Diagnostics > OK. Block and
unblock the Tray 4 Feed Out Sensor (PL 15.10). The display changes.
YN
Check the circuit of the Tray 4 Feed Out Sensor (Figure 1). Refer to Section 6, Transmis-
sive Sensor Procedure for troubleshooting procedure.
Perform the Paper Feed Motors test. The Tray 4 Feed/Lift Motor (PL 2.4) energizes.
YN
Check the circuit of the Tray 4 Feed/Lift Motor (Figure 2). Refer to Section 2, OF 99-9 RAP
for troubleshooting procedure.
Perform Service Diagnostics. All 3 Takeaway Rolls (PL 15.10) rotate.
YN
Takeaway Motor 1 (PL 15.9) energizes.
YN
Check the circuit of the Takeaway Motor 1 (Figure 3). Refer to Section 2, OF 99-9
RAP for troubleshooting procedure.
Check the Takeaway Motor 1 and its associated gears (PL 15.9) for damage, contamina-
tion and misalignment.
Check the Tray 4 Feed/Lift Motor and its associated gears (PL 2.4) for damage, contami-
nation and misalignment.
Ensure that the Tray 4 Chute (PL 15.10) is properly seated and not damaged.
Ensure that the connectors shown in the circuit diagrams (Figure 1, Figure 2, Figure 3)
are securely connected and that the wires are not damaged.
If these checks are OK, replace the Tray Module PWB (PL 15.9).

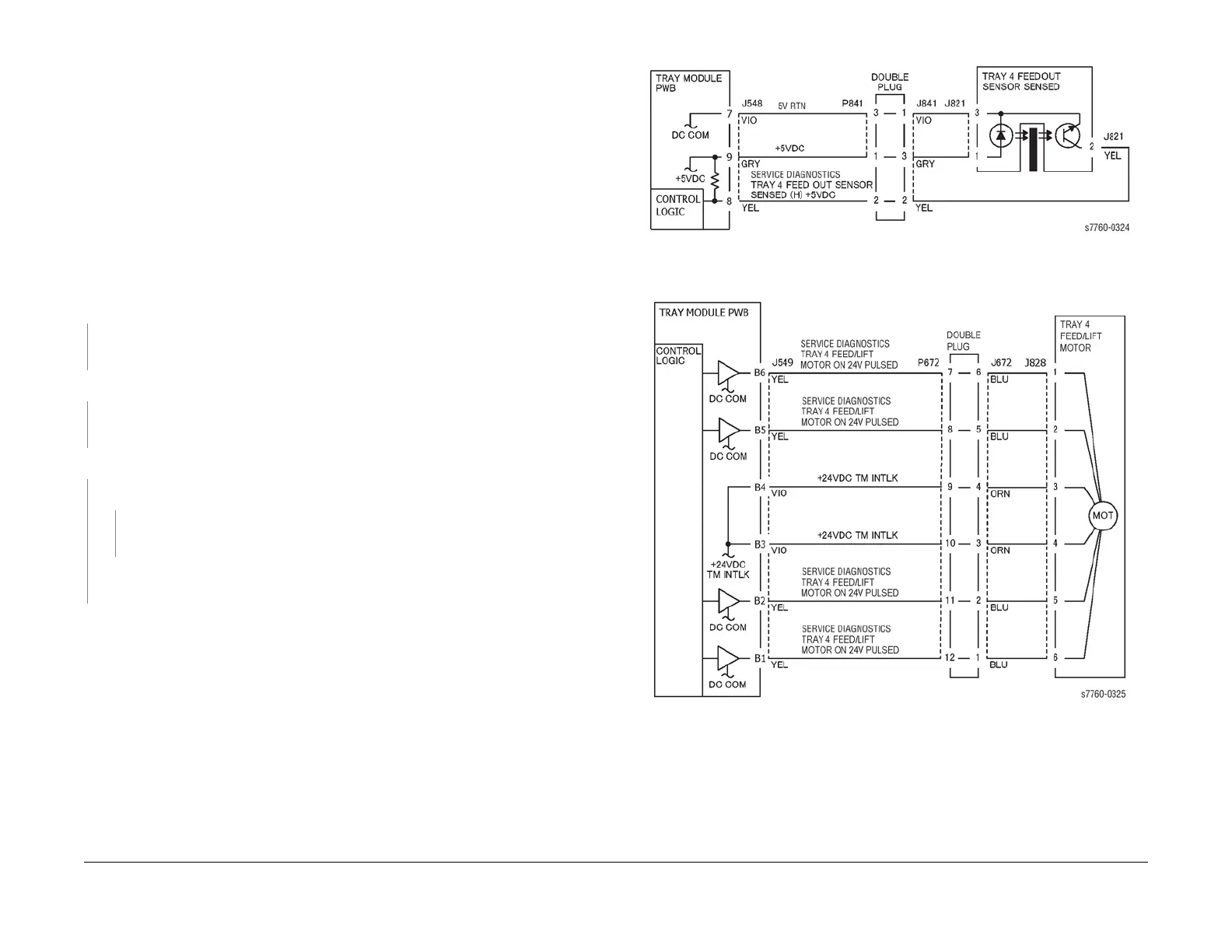

Figure 1 007-117 Tray 4 Feed Out Sensor
Figure 2 007-117 Tray 4 Feed/Lift Motor
