2-70
Phaser 7760 Color Laser Printer
007-117, 007-119
Revised
Status Indicator RAP’s

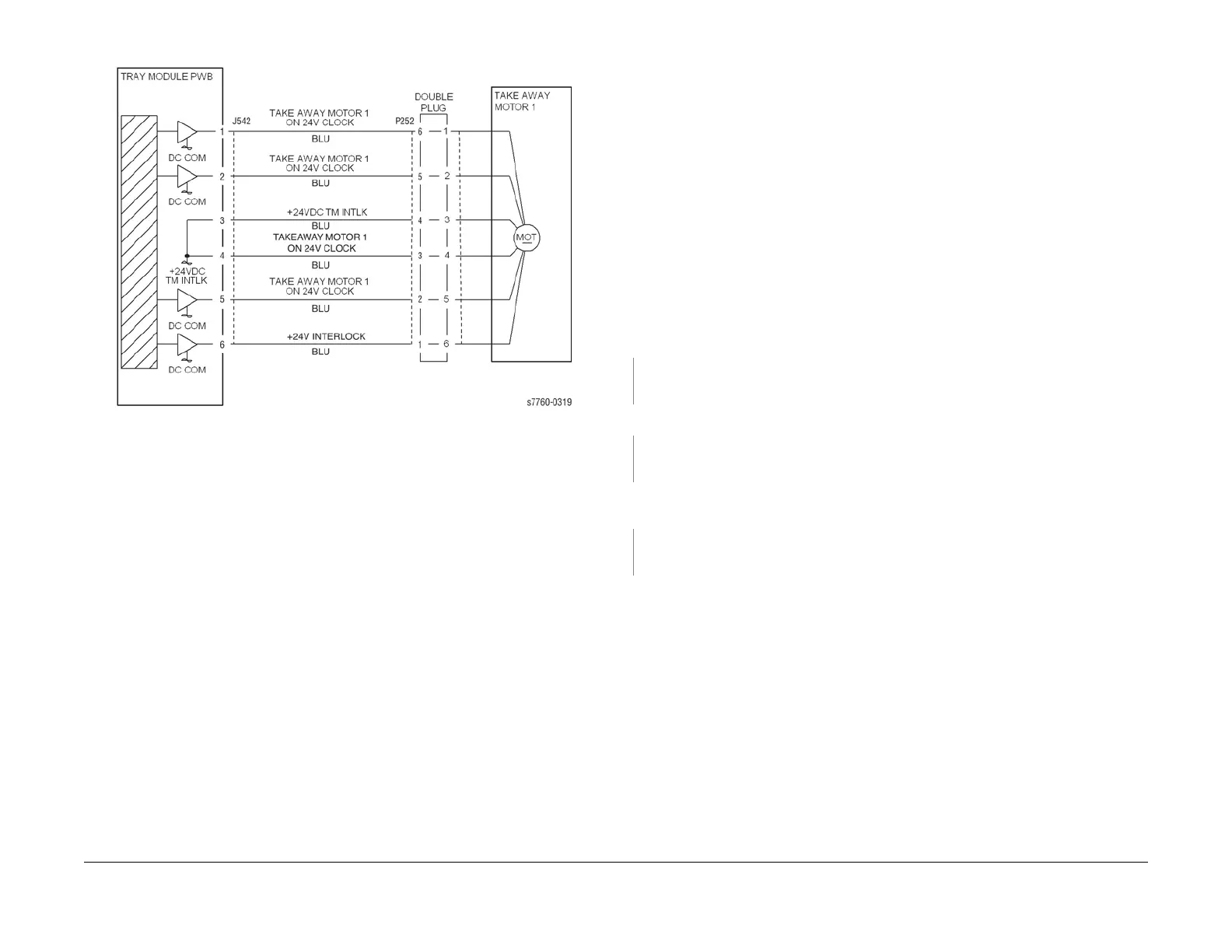

Figure 3 007-117 Takeaway Motor 1
007-119 Tray 5 Misfeed (TTM)
The Tray 5 Feed Out Sensor does not detect paper after feeding from Tray 5.
Initial Actions
Remove Tray 2 (REP 7.8). Ensure P/J840 is securely connected (below the left paper tray
rail, near the rear side of the machine).
Check condition and specification of paper in Tray 5.
Check for intermittent misfeeds ensure paper type selection is correct (open tray, select
Change Description).
Check the paper path for obstructions.
Check for wear and clean the Tray 5 Feeder Roll, Takeaway Roll and the Pinch Roll.
Procedure
Enter Service Diagnostics Menu: Printer Menu > Troubleshooting > Service Tools > Printer
Status Page > hold the Up and Down buttons simultaneously > Run Service Diagnostics >
OK. Block and unblock the Tray 5 Feed Out Sensor (PL 16.5) by sliding Tray 5 in and out of the
machine. The display changes.
YN
Check the circuit of the Tray 5 Feed Out Sensor (Figure 1). Refer to Section 6, Reflective
Sensor Procedure for troubleshooting procedure.
Perform the Paper Feed Motors test. The Tray 5 Feed/Lift motor energizes (PL 2.4).
YN
Check the circuit of the Tray 5 Feed/Lift Motor (Figure 2). Refer to Section 2, OF 99-9 RAP
for troubleshooting procedure.
Remove the TTM Rear Cover. Perform Service Diagnostics. The Takeaway Motor 2 (PL
16.15) energizes.
YN
Check the circuit of the Takeaway Motor 2 (Figure 3). Refer to Section 2, OF 99-9 RAP for
troubleshooting procedure.
Check the Tray 5 Feed / Lift Motor and its associated gears (PL 2.4) for damage, contam-
ination and misalignment.
Check the Takeaway Motor 2 and its associated gears (PL 16.15) for damage, contamina-
tion and misalignment.
Check that the Tray 5 Upper and Lower Chutes (PL 16.5) are properly seated and not
damaged.
Ensure that the connectors shown in the circuit diagrams (Figure 1, Figure 2, Figure 3)
are securely connected and that the wires are not damaged.
If these checks are OK, replace the Tray Module PWB (PL 16.15).
