Press with Full System Configuration

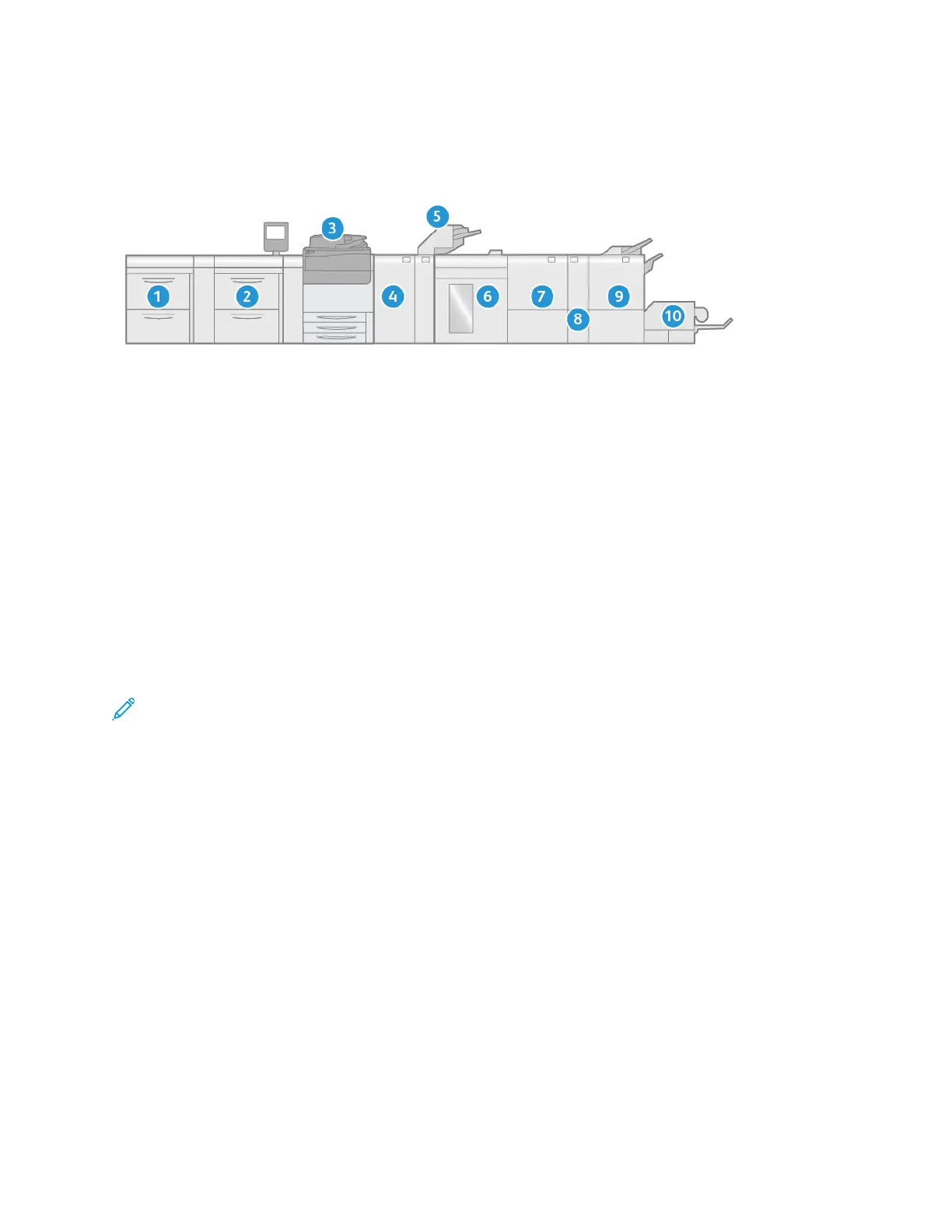

This is an example of a full system configuration of the press with optional devices attached.
1. Dual Advanced Oversized High Capacity Feeder (Trays 8 and 9) (Optional)
2. Advanced Oversized High Capacity Feeder (Trays 6 and 7) (Optional)
3. Press
4. Interface Decurler Module (IDM) (Optional)
5. Inserter Module (Optional)
6. High Capacity Stacker (Optional)
7. Two-sided Trimmer (Optional)
8. C/Z Folder (Optional)
9. Production Ready (PR) Finisher (Optional)
10. SquareFold
®
Trimmer (Optional)
Note: Full system configurations vary depending on which optional devices are attached to the
press. For detailed information about an optional device, refer to the appropriate section in this
guide.
Locating the Press Serial Number
The press serial number can be accessed from the User Interface (UI) or from the serial number plate
which is located on the inside frame of Tray 1.
1. Press the Machine Status button on the UI.
2. From the Machine Status screen, ensure that the Device Information tab is displayed.
The press serial number is displayed under Device Serial Number near the bottom of the screen.
3. If there is a loss of power and it is not possible to access the Machine Status screen, the press
serial number can also be found on the inside frame of the press near the Paper Tray 1 drawer:
a. At the press, fully open Tray 1.
12
