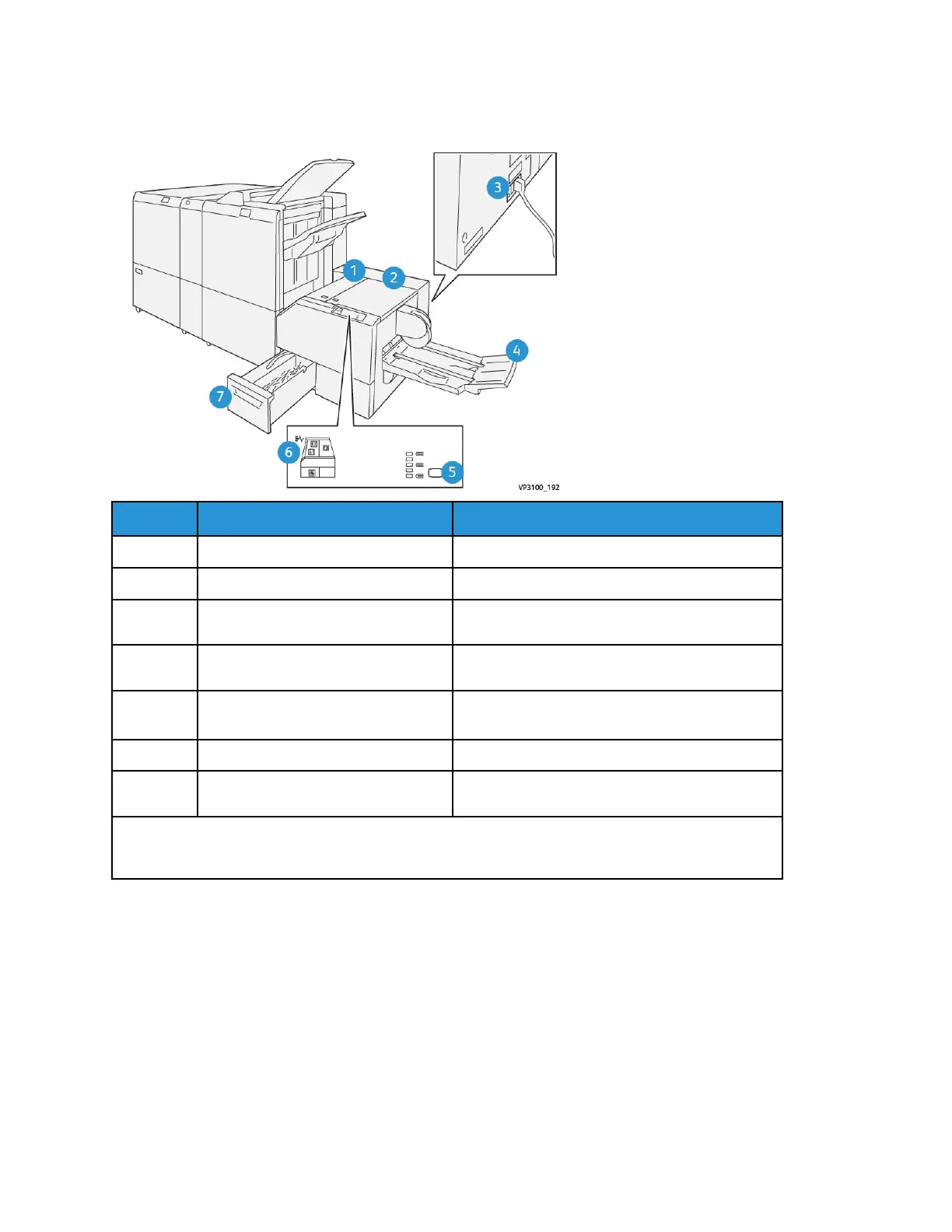

SquareFold
®
Trimmer Components
Number
Component Description
1 Left Cover * Open this cover to remove paper jams.
2 Right Cover * Open this cover to remove paper jams.
3 Circuit Breaker Switch on the rear of
device
Automatically shuts off electricity in the event
of an electrical fault or a short circuit.
4 Booklet Tray This tray receives square-fold booklet output
from the finisher.
5 Square-fold Adjustment Button Press this button to adjust the thickness of
printed booklets.
6 Paper Jam and Error Indicator Lights when a paper jam occurs.
7 Trimmer Waste Container Collects waste from the trimmer area of the
device.
* The covers cannot be opened during normal operation or when the press is idle. The covers can be
opened only when an indicator is lit and a jam or fault occurs within the SquareFold
®
Trimmer
device.
168
