Production Ready Finisher Plus Troubleshooting
Clearing Paper Jams in PR Finisher Plus, Areas E1-E6
Refer to the following procedures for clearing paper jams the PR Finisher Plus, Finisher Module areas
E1–E6:
• Clearing Paper Jams from Finisher Area E1
• Clearing Paper Jams from Finisher Area E2
• Clearing Paper Jams from Finisher Area E3
• Clearing Paper Jams from Finisher Area E4
• Clearing Paper Jams from Finisher Area E5
• Clearing Paper Jams from Finisher Area E6
Clearing Paper Jams in the PR Finisher Plus, Area E7

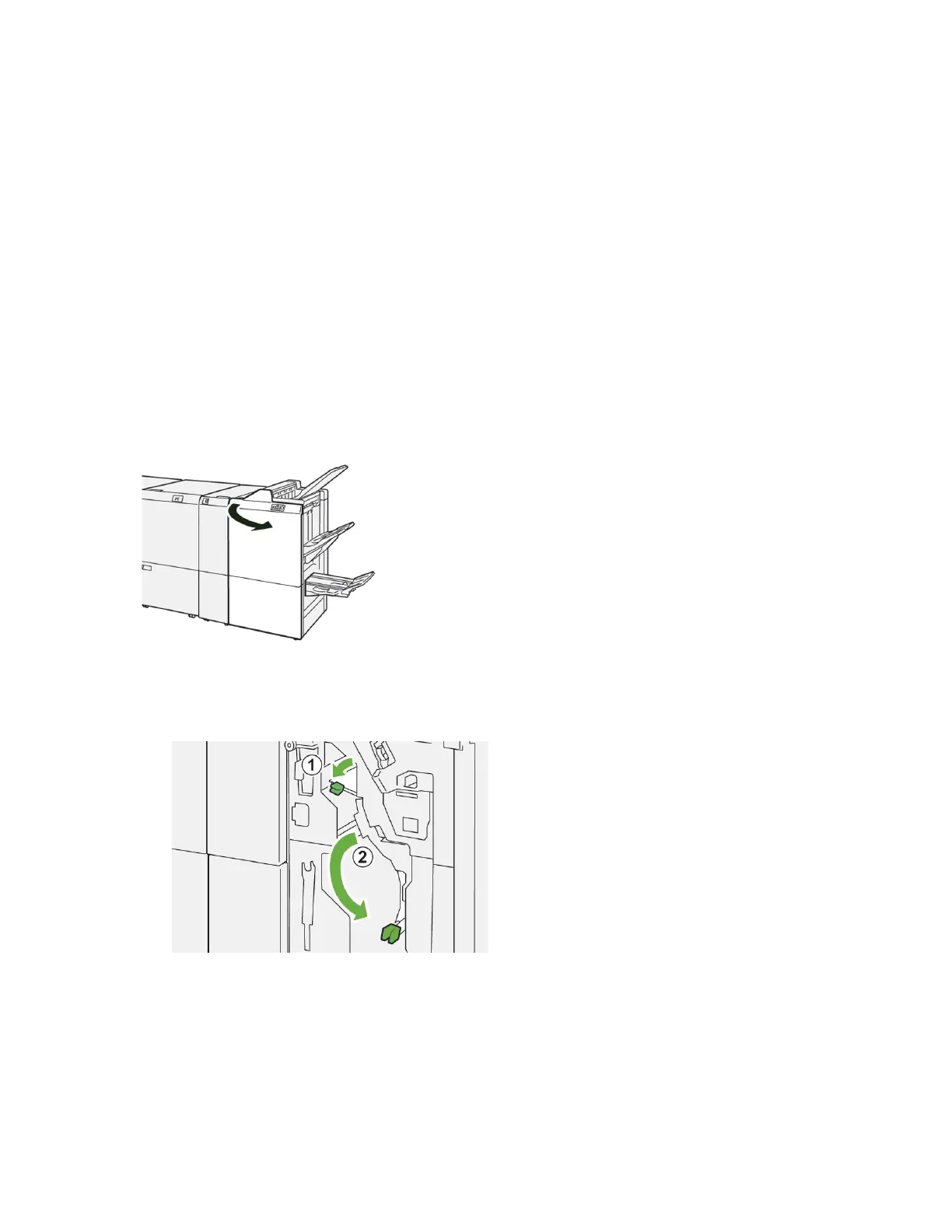

1. Open the finisher front cover.
2. Remove any jammed paper.
3. To clear paper jams from Area E7, perform the following:
a. Open lever 3a to the left (1) and lever 3b to the left (2).
352
