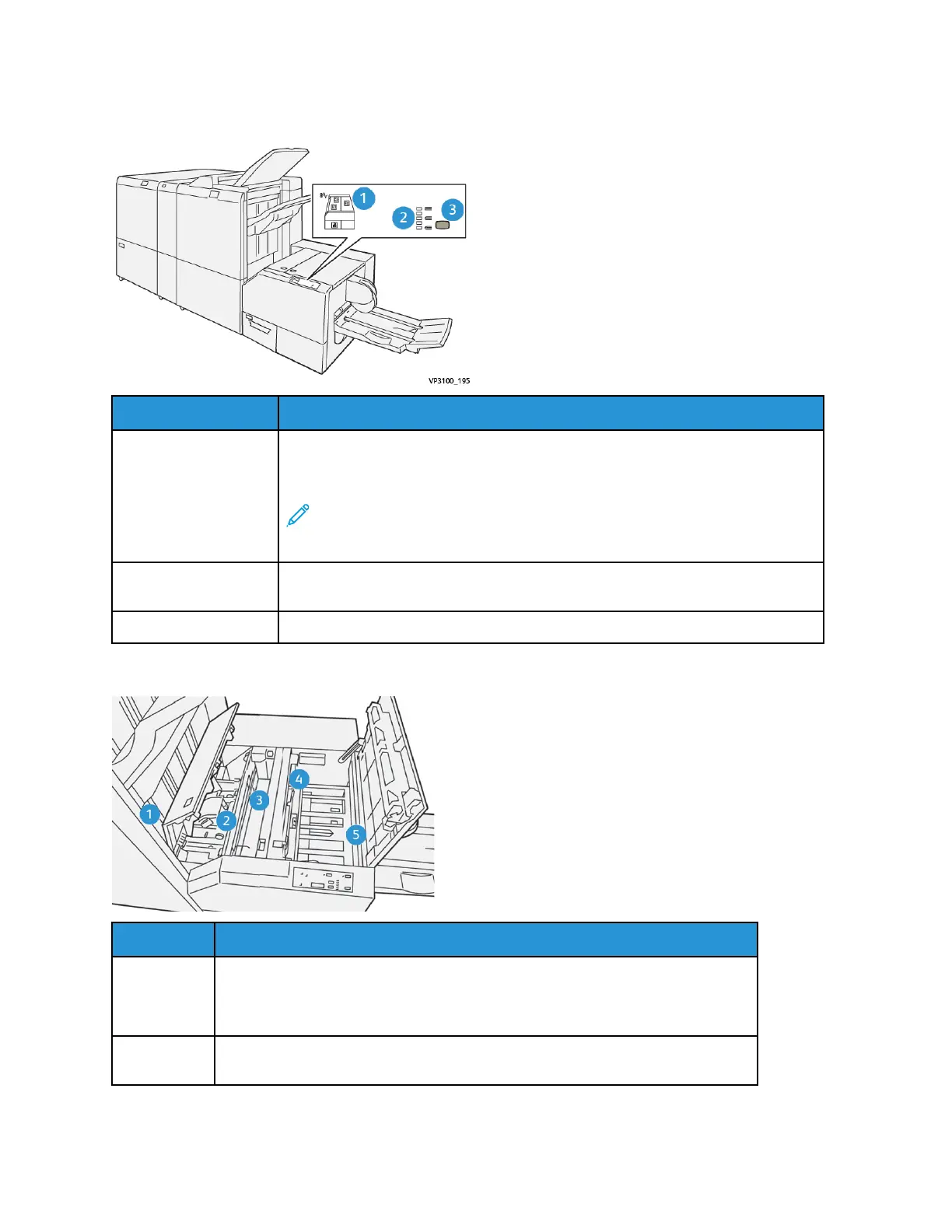

Control Panel
Number
Description
1 Fault indicators: These indicators light when a fault or jam occurs in a particular
area of the SquareFold
®
Trimmer device. The lower indicator (with the lock icon)
lights when the trimmer waste container is pulled out or when it is full.
Note: If El, E2, or E3 is lit, the left and right covers can be opened and the
jam or fault cleared. Otherwise, during normal operation or when the press
is idle, the covers cannot be opened.
2 Select the desired square-fold setting; for more information refer to the Square
Fold Adjustment Settings.
3 Press this button to adjust the square-fold, book thickness setting.
SquareFold
®
Trimmer Paper Path
Number
Description
1 The booklet leaves the booklet area of the finisher and enters the SquareFold
®
Trimmer device. The booklet exit sensor, in the SquareFold
®
Trimmer device,
detects the lead-edge spine of the booklet and moves the booklet to the square-
fold area.
2 Once the booklet spine reaches the square-fold area, the booklet is clamped and
the square-folding operation begins.
