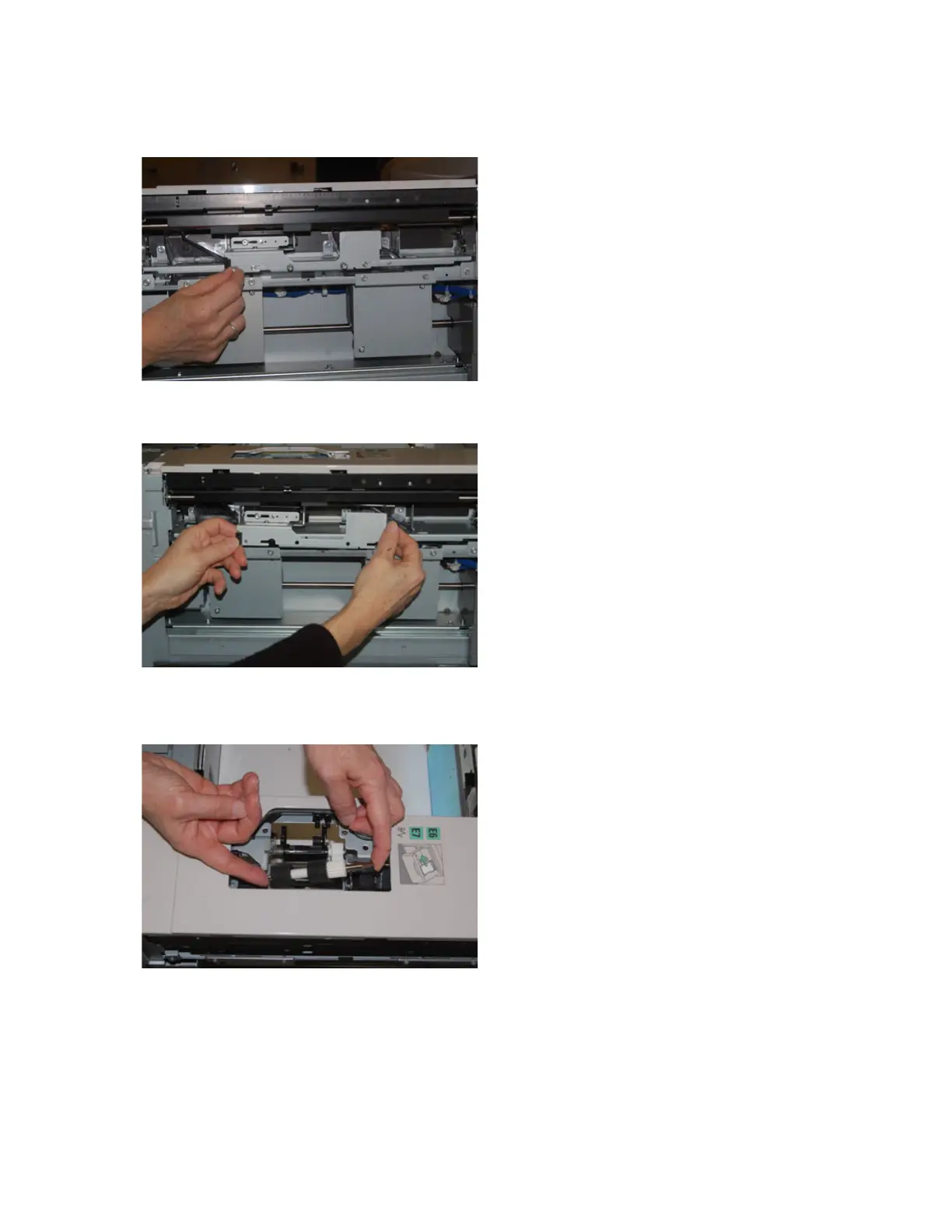

5. Next, remove the separator roll assembly at the side of the feeder tray to access the separator
roll. Unscrew the 3 thumbscrews.
6. Slide the separator assembly all the way to the left so it is out of the slots. Pull the assembly out
towards you until completely removed from the tray. Set aside.
7. With the separator assembly out, access and remove the feed roll. To remove, squeeze both ends
of the metal shaft and lift out. To replace, squeeze both ends of the new roll shaft, then insert
and release the roll ends into the notches.
