• Separator Roll
Note: After you replace all of the feed rolls, contact your system administrator who will reset
the High Frequency Service Item (HFSI) usage counter for these CRU components to zero (0).

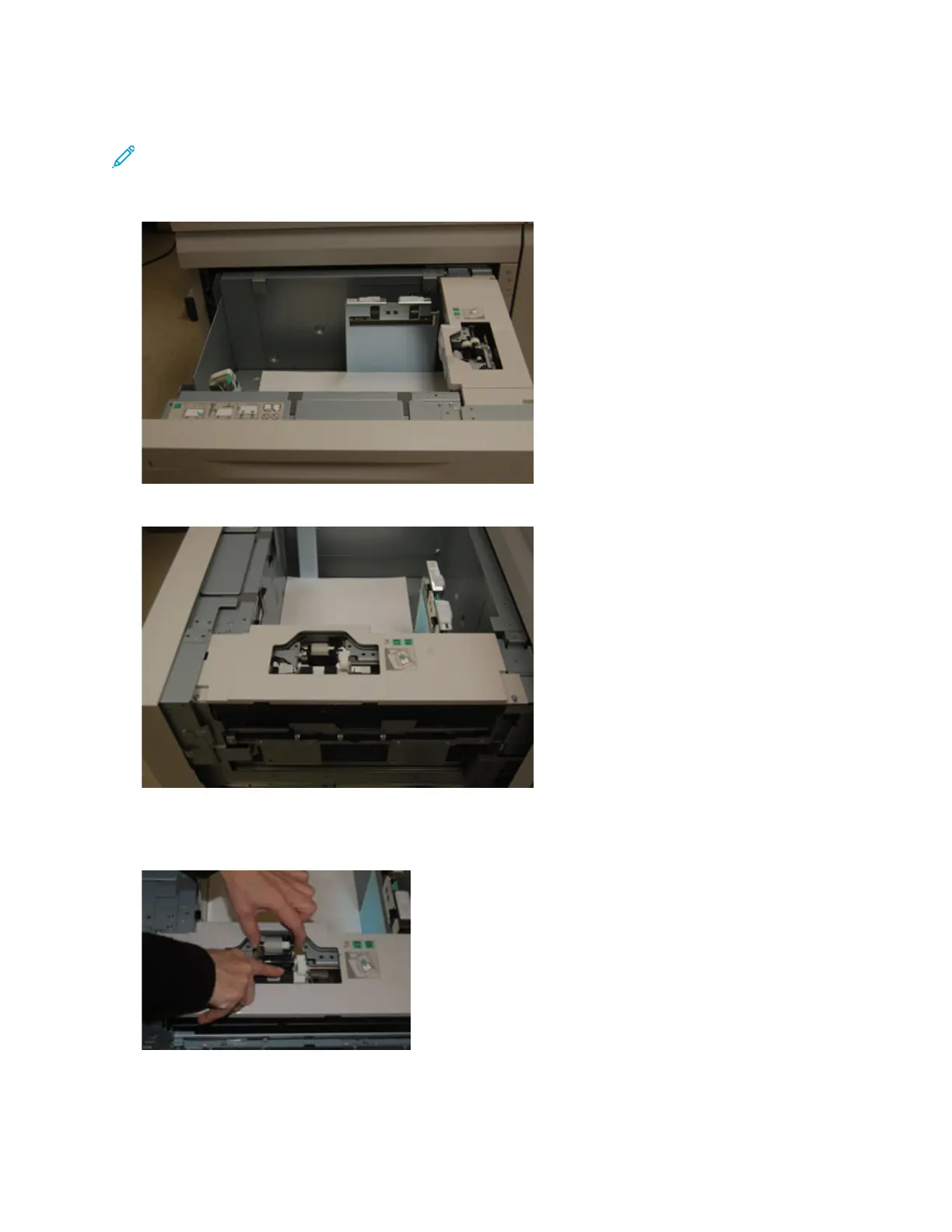

1. Pull open the top tray to access the feed components.
2. Notice the feed roll compartment on the right-side panel of the drawer.
3. Remove the nudger roll by pushing down on the black tab with one hand (which raises the roll
upward) and then squeezing the metal shaft on both ends with your other hand. Lift out the
nudger roll.
4. Replace the new roll by squeezing both ends of the metal shaft, and pushing down on the black
tab, insert and release the roll ends into the notches.
209
