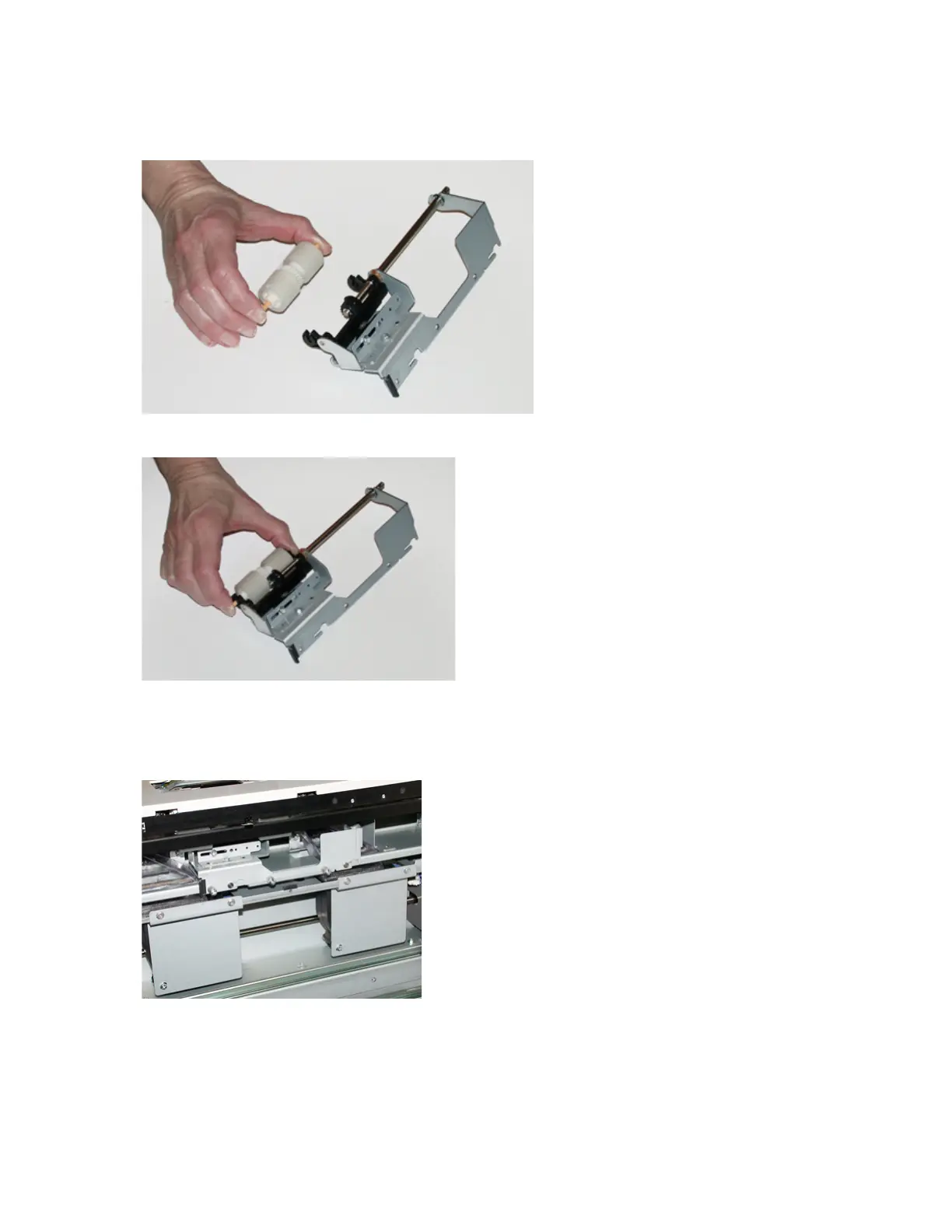

8. Finally, replace the separator roll. Squeeze the orange shafts of the separator roll and lift out of
the assembly.
9. Replace a new separator roll into the black notches of the assembly using the same technique.
10. Reinstall the separator assembly into the tray. Align the cutout holes of the assembly with the
frame of the tray so the pin holes match up. Insert the assembly into the frame. Slide the
assembly all the way to the right using the pin as a guideline. Ensure the device is all the way into
the slots and the 3 screw areas align.
11. Screw in the 3 thumbscrews to attach the assembly. Do not over tighten.
12. Close the tray and verify that the tray is operating successfully by feeding paper using that tray.
13. Log in as the administrator or ask the administrator to perform the following steps to reset the
High Frequency Service Item (HFSI) count to zero (0).
