Clearing Paper Jams from Folder Area E10

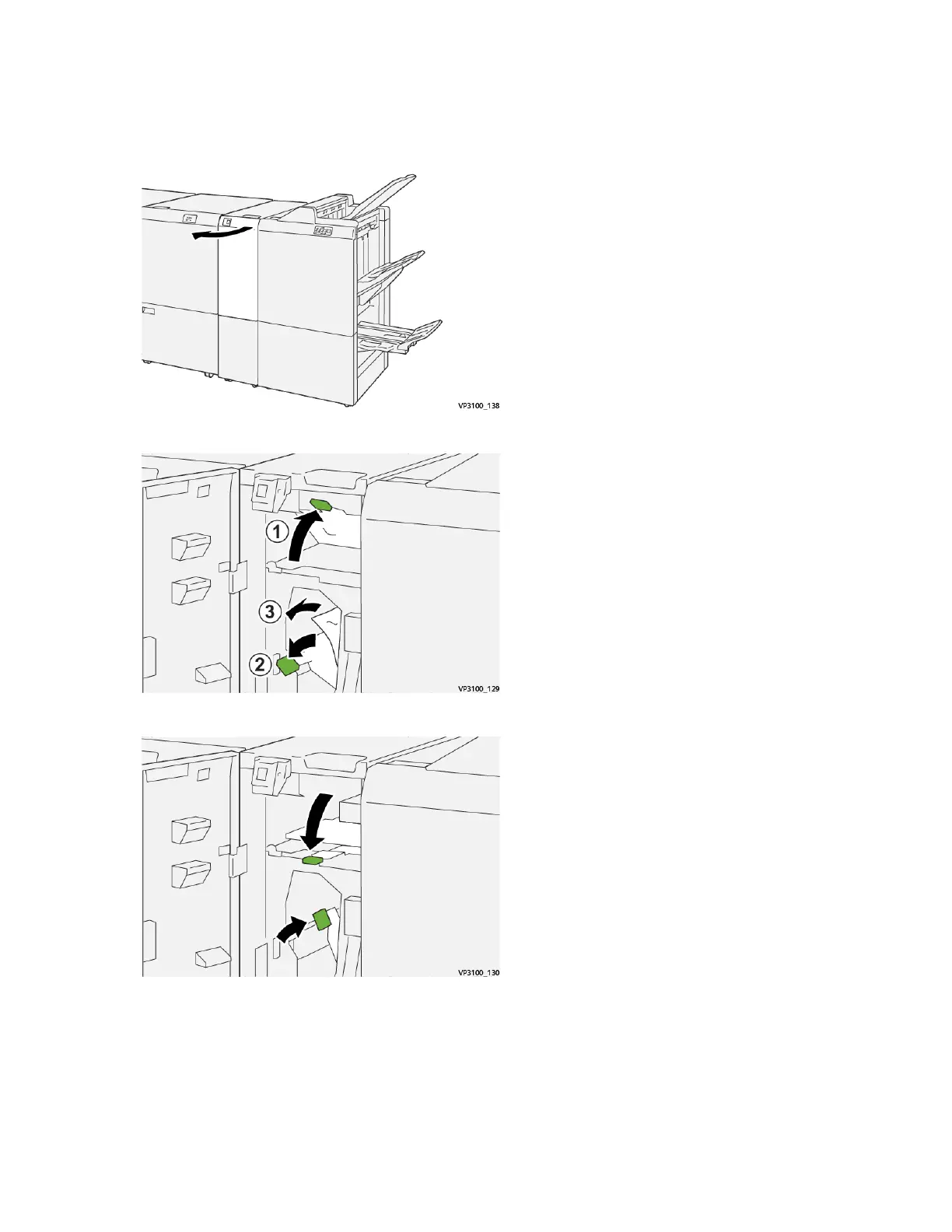

1. Open the folder front cover.
2. Open lever 2a upward (1) and lever 2b to the left (2). Remove jammed paper (3).
3. Return levers 2a and 2b to their original positions.
4. Close the folder front cover.
5. If the press indicates there are additional paper jams, follow the instructions to clear the paper
and to resume printing.
