06/2014
4-105
WC 5022/5024
Repairs and Asdjustments
Version 1.0

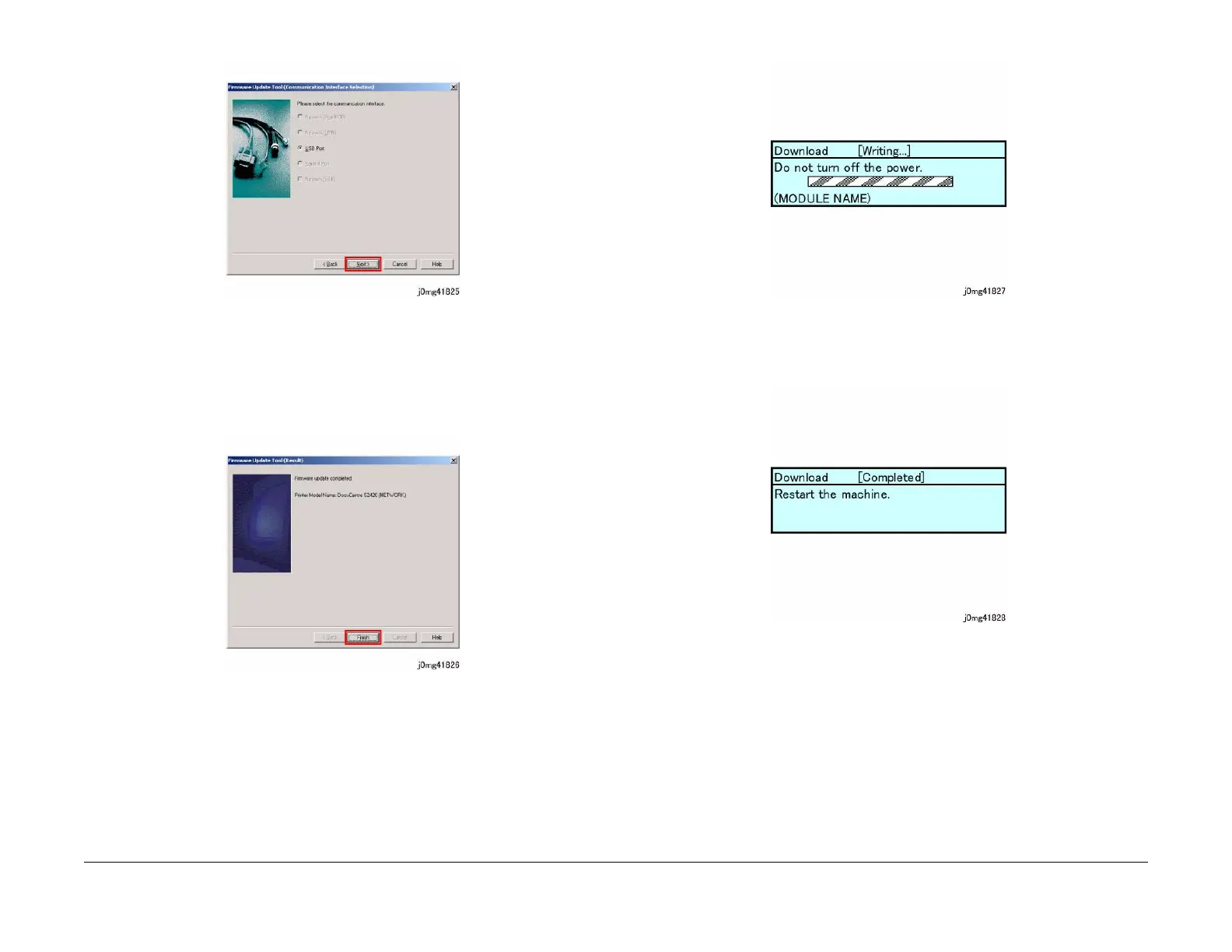

Figure 6 j0mg41825
f. The Firmware upgrade status appears on the [Updating] screen. After it has com-
pleted, the following result screen will be displayed and the transfer is ended. Click
[Finish].
NOTE: However, you cannot turn OFF the machine immediately after this.
Figure 7 j0mg41826
5. After the download data is transferred, the Flash ROM in the machine will be overwritten.
• At this time, the UI display will be as follows.
Figure 8 j0mg41827
6. When the download has completed successfully, the following will be displayed, and then
the machine will Auto-Reboot.
Figure 9 j0mg41828
To Next Page
