Xerox WorkCentre 5024

06/2014
9-7
WC 5022/5024
9.1.5 One Tray Module
Installation/Removal
Version 1.0
9.1.5 One Tray Module
Product Code
•
Installation Procedures

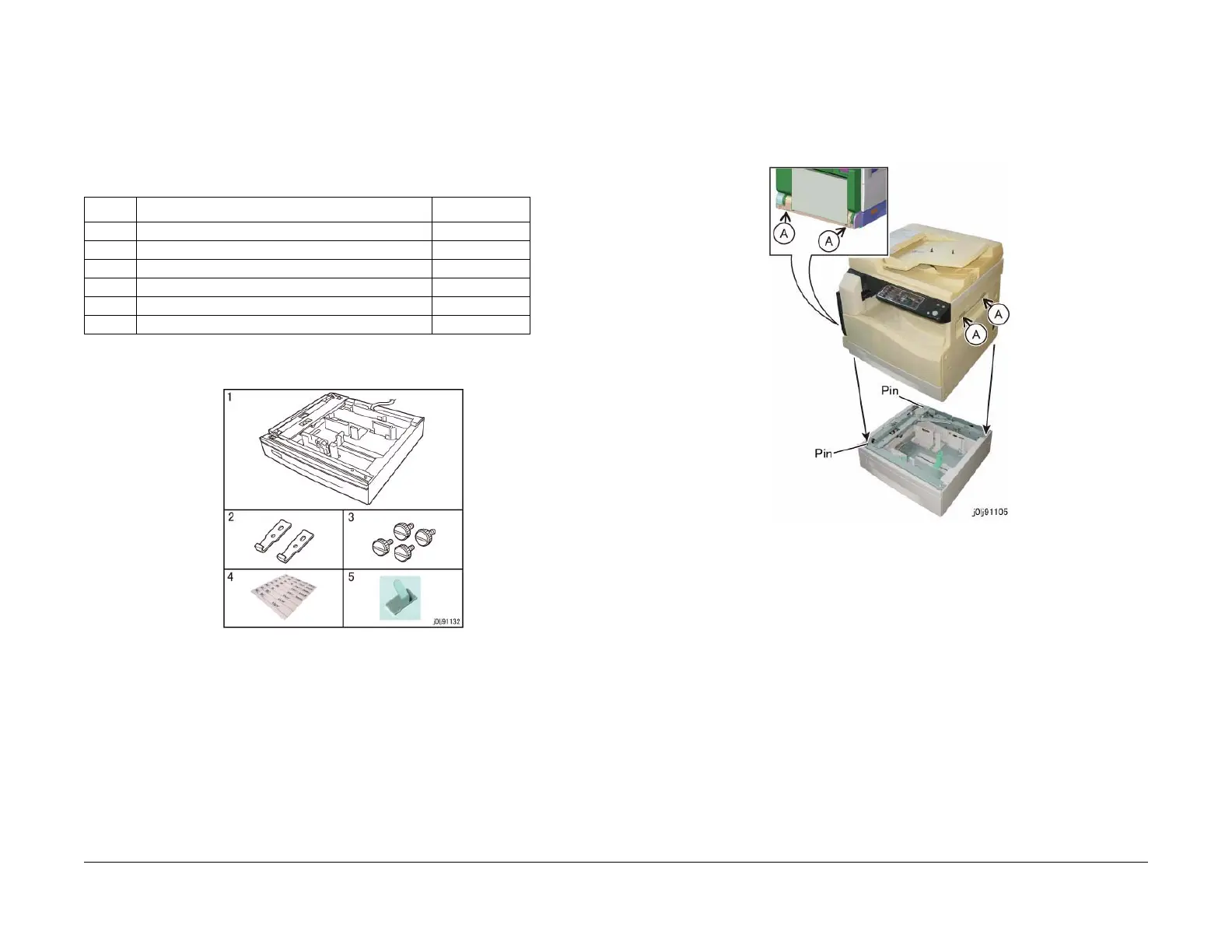

1. Check the bundled items. (Figure 1)
• There is no illustration for Item 6
Figure 1 j0lj91132
2. Remove the packaging tapes and materials from the One Tray Module.
3. Turn OFF the power switch and make sure that the screen display turns OFF.
CAUTION
When turning OFF the power switch, check that the "Data" lamp is OFF and that there is
no Job in progress.
4. Unplug the power plug.
WARNING
When maintaining the machine, turn OFF the power switch and unplug the power
plug.
5. Disconnect all cables that are connected to the right of the IOT.
WARNING
As the IOT is very heavy, make sure you have 3 or more persons (2 at the left and 1
at the right) to perform the mounting.
6. Hold onto the IOT at the indicated positions (A: x4) and align it to the positioning pin (x2)
of the One Tray Module to mount it.
(Figure 2)
Figure 2 j0lj91105
7. Pull out and remove Tray 1.
8. Secure the One Tray Module to the IOT by using the Docking Screw (x2). (Figure 3)
a. Secure it by using the Docking Screw (x2).
Table 1
No Name Qty
1 One Tray Module 1
2 Docking Bracket 2
3 Docking Screw 4
4 Size Label 1
5 Clamp 1
6 Installation Guide 1
