Xerox WorkCentre 5024

06/2014
9-9
WC 5022/5024
9.1.6 Stand
Installation/Removal
Version 1.0
16. Plug the power cord into power outlet, and turn ON the power switch.
17. Check the operation of the One Tray Module.
18. Explain to the customer how to operate the One Tray Module where necessary.
9.1.6 Stand
Product Code
• One Tray Module:
• Stand:
Installation Procedures
1. Before Installation
• When installing this Kit, prepare the One Tray Module too and perform the installa-
tion in sequence.
NOTE: The [Installation Guide] that comes bundled with the Stand is meant for a
User and therefore, it only contains the instruction for securing the One Tray Module
and the Stand to the [Front Side]. As the procedure here is meant for a CE, it also
contains the instruction for installing to the [Rear Side].
2. Check the bundled items.

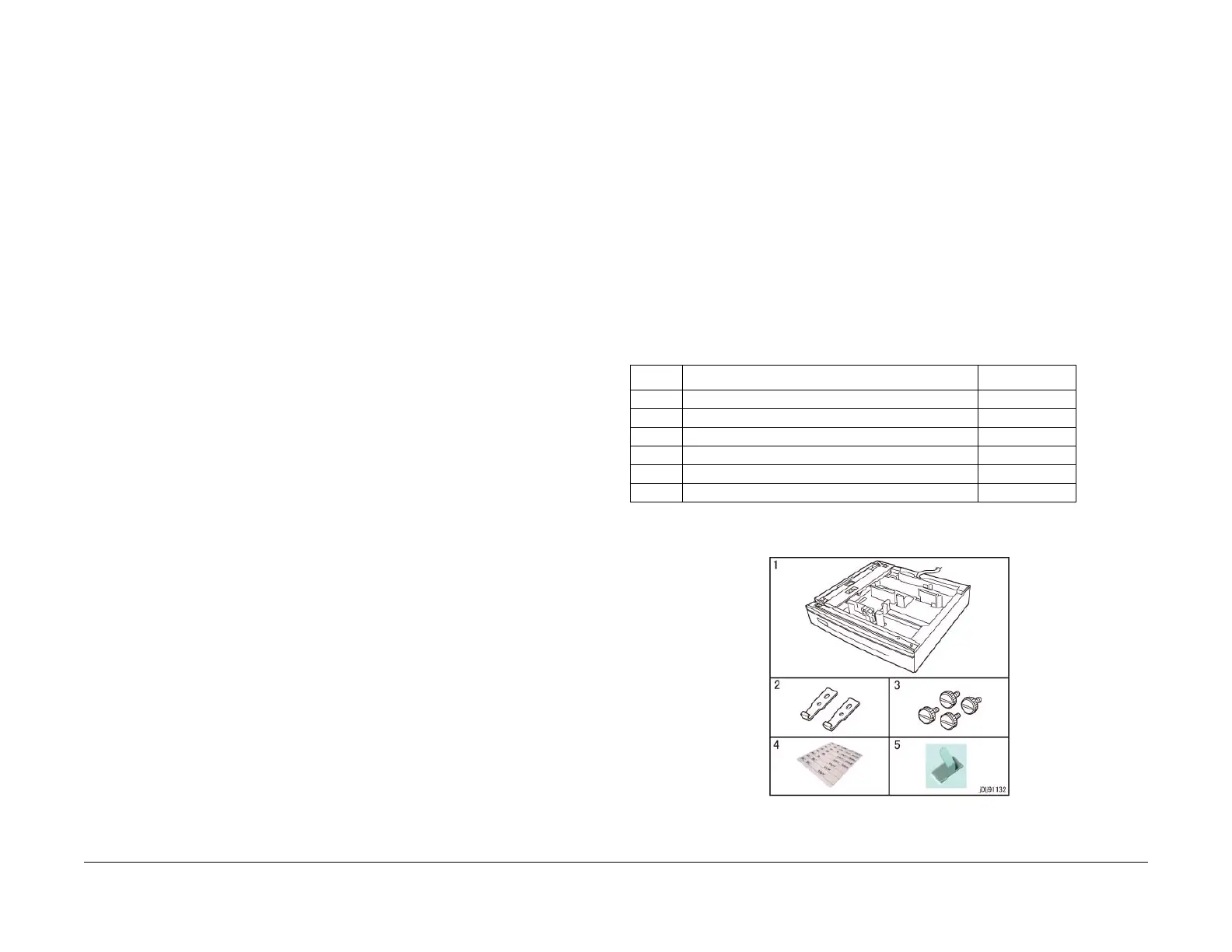

• One Tray Module (Figure 1)
• There is no illustration for Item 6
Figure 1 j0lj91132
Table 1
No Name Qty
1 One Tray Module 1
2 Docking Bracket 2
3 Docking Screw 4
4 Size Label 1
5 Clamp 1
6 Installation Guide 1
