5.2 MP2100/MP2100M Connections
5-11
5

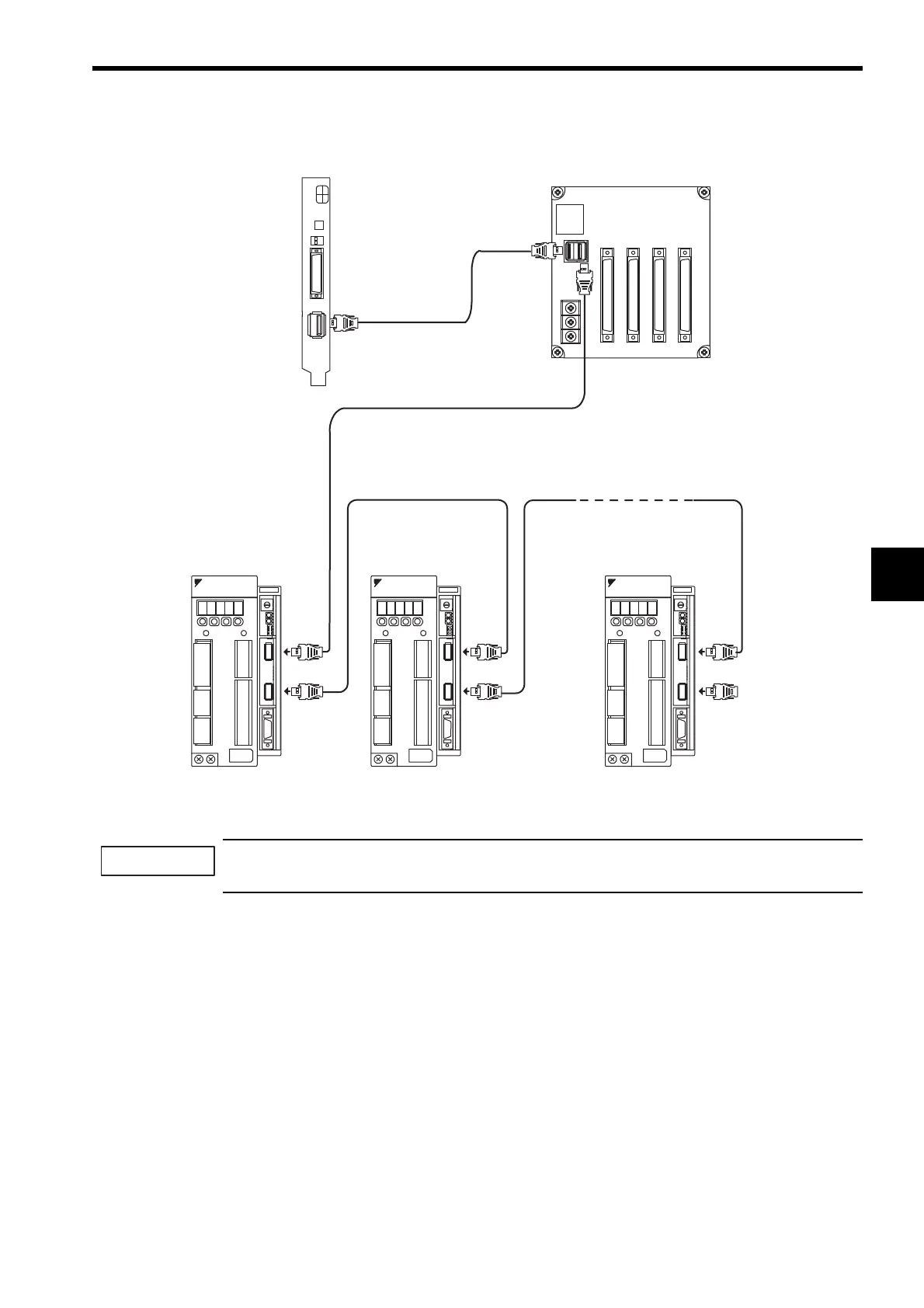

(8) Connection Example between MP2100/MP2100M, SERVOPACK, and IO2310
Note: 1. Use standard cables between units.
2. Use under the conditions that L1 + L2 + L3 + . . . + Lu
≤ 50 m
The MP2100/MP2100M has a built-in terminator.
Insert a JEPMC-W6022 terminator into c in the above diagram.
NS100
SGDH-
YASKAWA SERVOPACK
NS100
SGDH-
YASKAWA SERVOPACK
NS100
SGDH-
YASKAWA SERVOPACK
L1
L2
Ln
Terminator
CN1
IN1 OUT1 IN2 OUT2
A1 A1 A1 A1B1B1 B1 B1
YASKAWA
JEPMC-IO2310
c
M-4/10
I/O
MP2100
BAT
TX
S2
S1
MP2100
IO2310
