YASKAWA MP2100 Series - Page 44

3 System Startup
3.1.9 Starting the MPE720
3-16

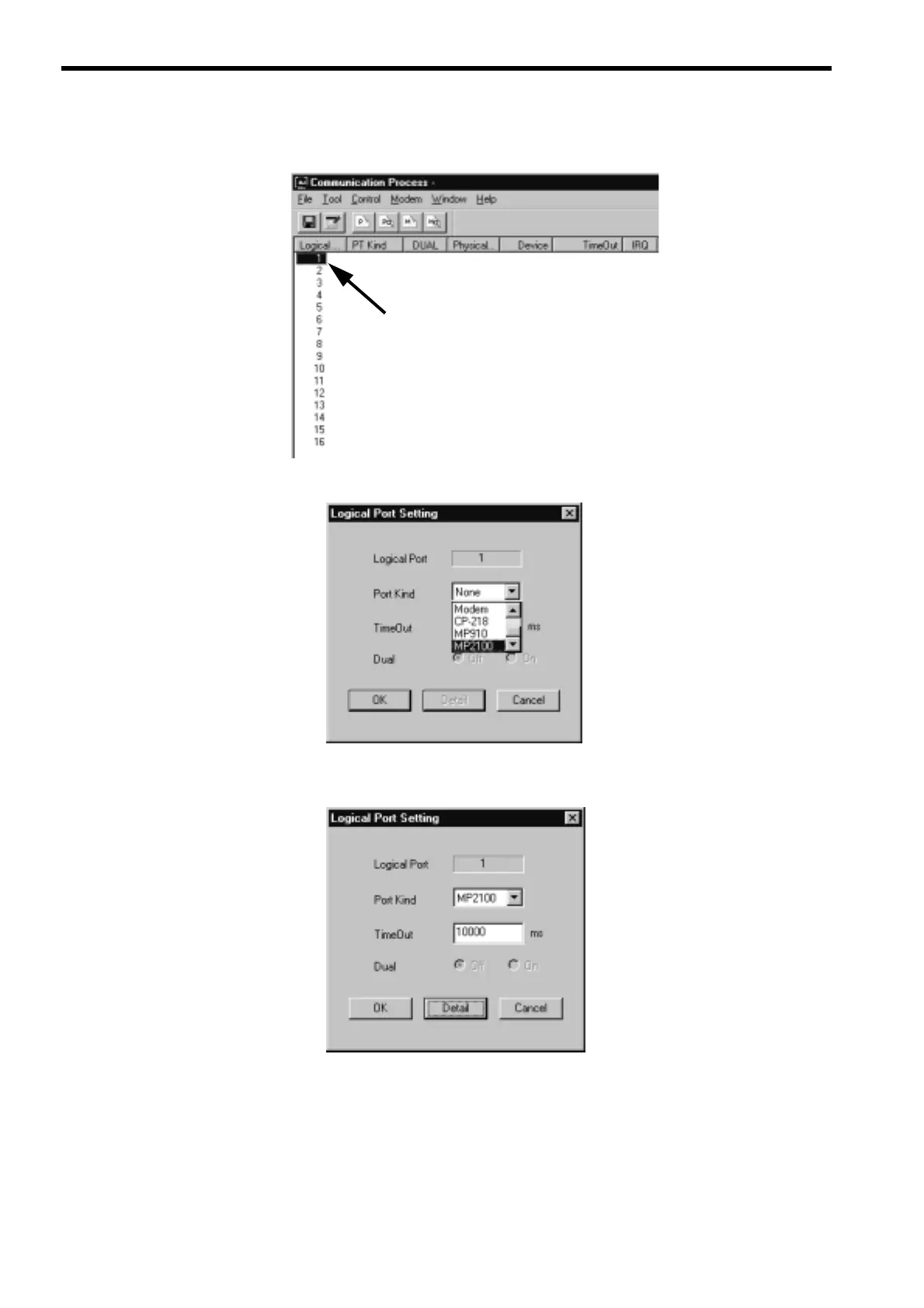

2. Double-click Logical PT number 1 in the Communication Process Window to display the Logical Port
Setting Window.
3. Select MP2100 under Port Kind in the Logical Port Setting Window.
4. Setting MP2100 Ports
a) Click the Detail Button in the Logical Port Setting Window.
Double-click
