YASKAWA P1000 Technical Manual

No. Name Setting Range Default
L1-04 Motor Overheat Fault Operation Selection (PTC input) 0 to 2 1
Setting 0: Ramp to Stop
The drive stops the motor using the deceleration time 1 set in parameter C1-02.
Setting 1: Coast to Stop
The drive output is switched off and the motor coasts to stop.
Setting 2: Fast Stop
The drive stops the motor using the Fast Stop time set in parameter C1-09.
n
L1-05: Motor Temperature Input Filter Time (PTC input)
Sets a filter on the PTC input signal to prevent erroneous detection of a motor overheat fault.
No. Name Setting Range Default
L1-05 Motor Temperature Input Filter Time (PTC input) 0.00 to 10.00 s 0.20 s
n
L1-13: Continuous Electrothermal Operation Selection
Determines whether to hold the current value of the electrothermal motor protection (L1-01) when the power supply is
interrupted.
No. Name Setting Range Default
L1-13 Continuous Electrothermal Operation Selection 0 to 2 1
Setting 0: Disabled
Setting 1: Enabled
Setting 2: Enabled (RTC)
n
Motor Protection Using an NTC Thermistor Input
Motor protection is possible for models 4A0930 and 4A1200 by connecting the NTC thermistor input in the motor windings
to one of the drive analog input terminals.
This enables the drive to provide torque compensation in response to changes in motor temperature and protect the motor from
overheating.
If the NTC input signal using the drive multi-function analog input terminal exceeds the overheat alarm level set to L1-16,
then “oH5” will flash on the digital operator screen. The drive will respond to the alarm according to the setting of L1-20
(default setting is to continue operation when an oH5 alarm occurs).

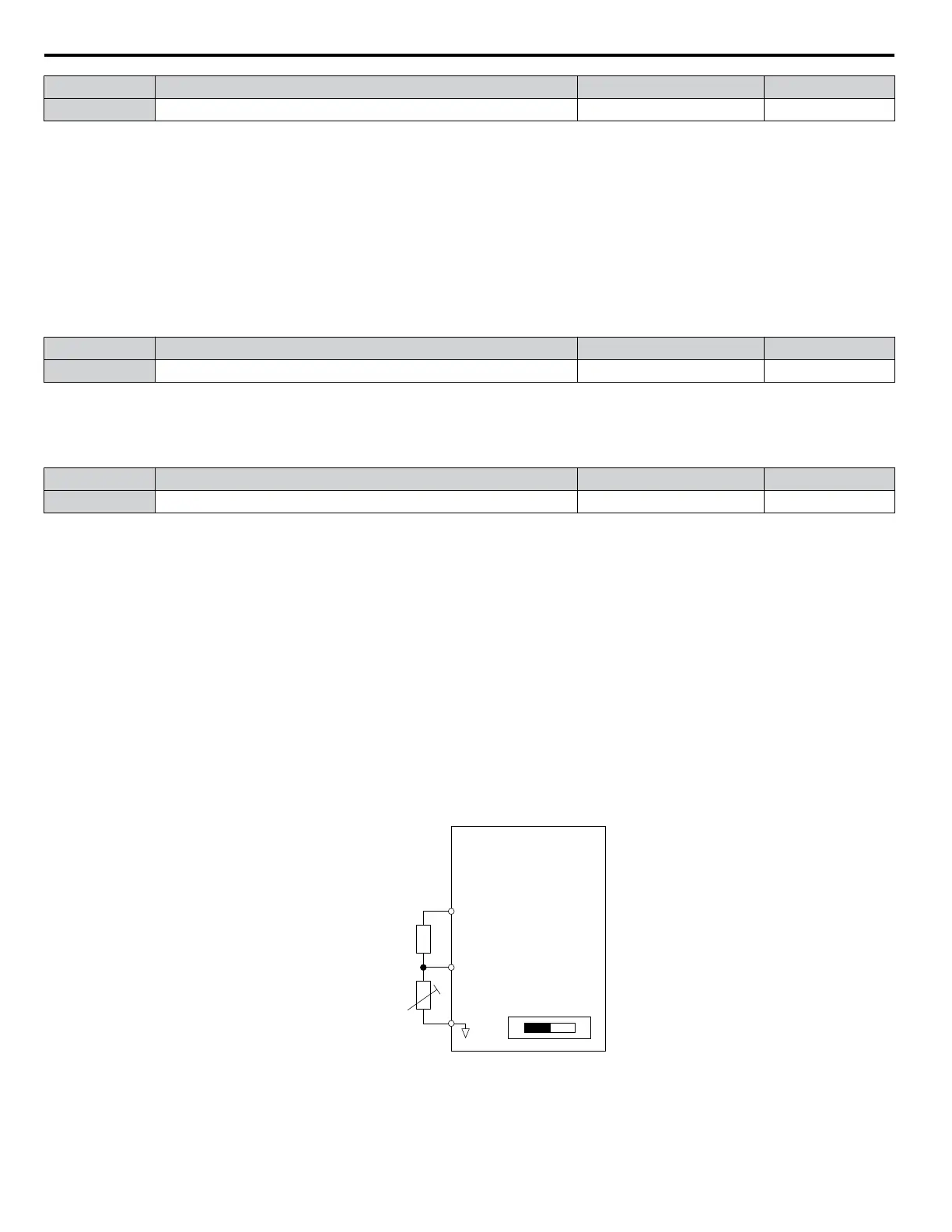

Figure 5.69 shows a circuit using the NTC thermistor and the terminal resistance values. Set jumper S1 on the drive to for
voltage input when wiring the NTC thermistor input to terminal A2 on the drive.
Note: This example assumes that H3-10 = 17, H3-09 = 0, and that jumper S1 has been set for voltage input.
+V
(+10.5 V, 20 mA)
Voltage Divider
2 kW
NTC Thermistor
A2 (0-10 V)
DIP Switch S1
AC
V I
Drive
Figure 5.69 Motor Protection Circuit Using NTC Input
5.8 L: Protection Functions
238
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
