ZOLL R Series Service Manual

R Series Service Manual
3-32 9650-0903-01 Rev. L
Removing Pace Defibrillator Engine

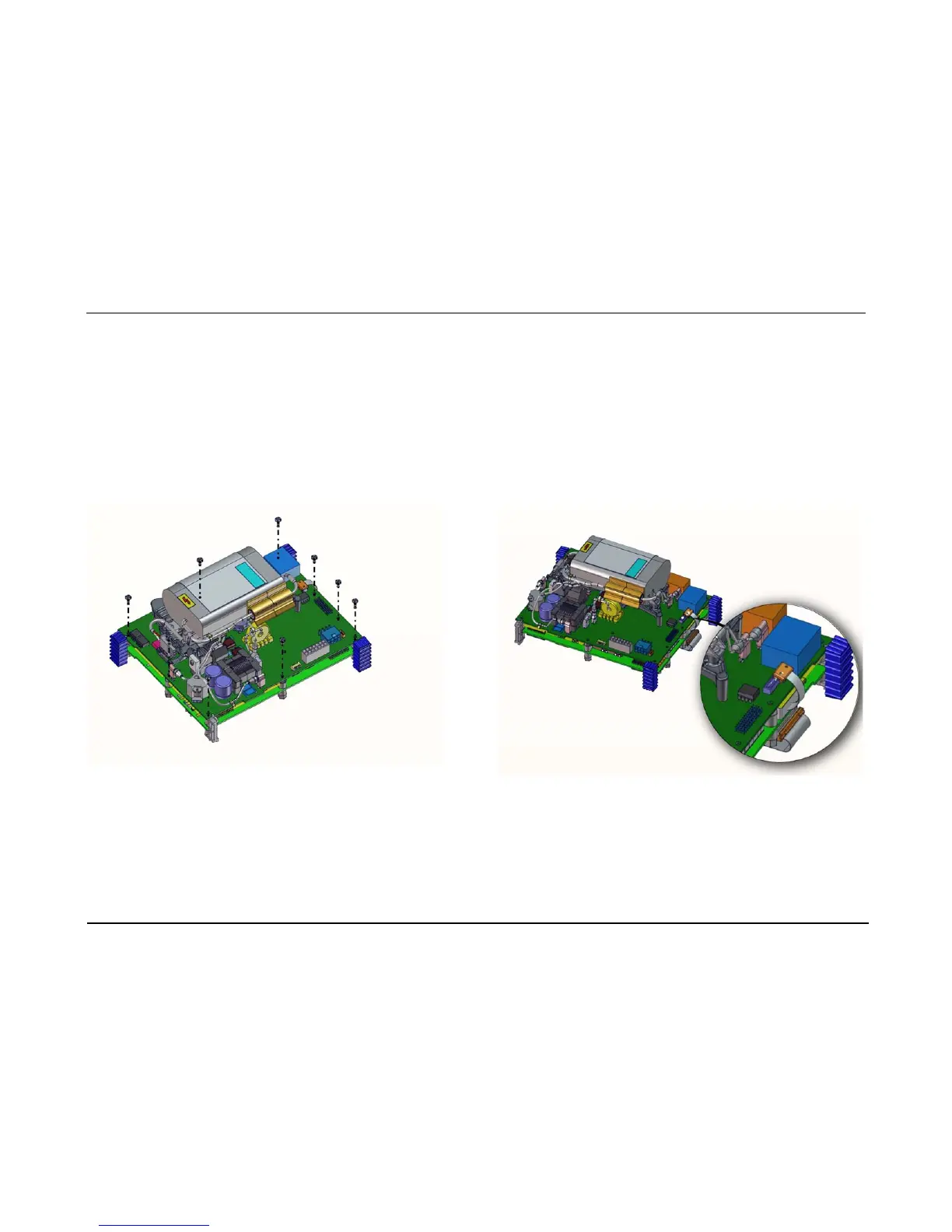

1. PD Engine: Remove 9 screws holding PD Engine to
assembly.
2. Carefully remove cable from PD Board.
Note: During reassembly, inspect standoffs and corner post to verify they
are not stripped, replace them if necessary. Torque 4 corner screws
(longer) to 6 in-lbs, and the 5 inter screws to 4 in-lbs.
Note: Use a rocking motion to unseat connector from board.
7

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
