R Series Service Manual

9650-0903-01 Rev. L 1-11

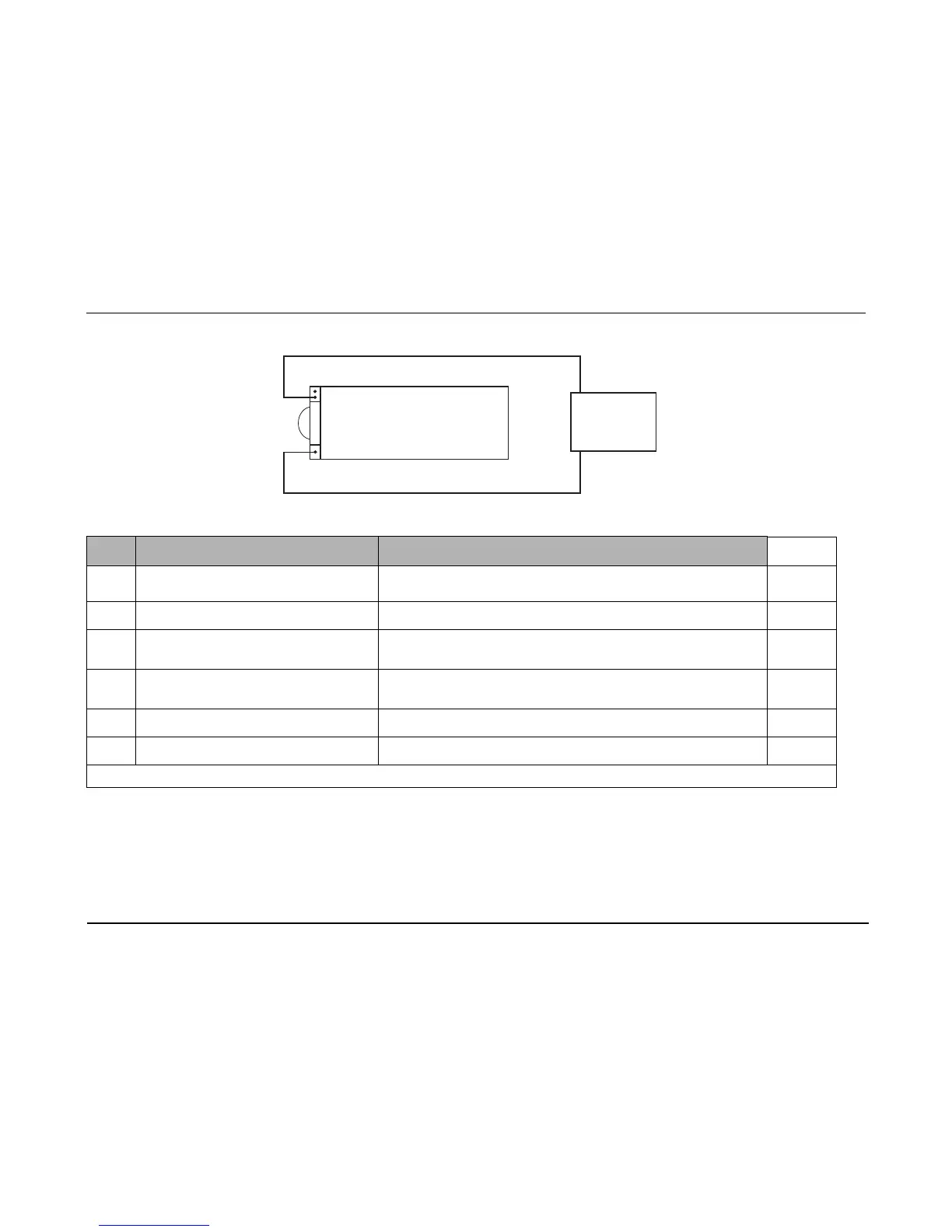

Do this... Observe this... Pass/Fail

4.1 Turn the selector switch to MONITOR (for AED

units turn to ON.)

The unit should not turn on.

4.2 Turn the unit off.

4.3 Adjust the power supply voltage to 10.8V and

turn the selector switch to MONITOR.

The unit should turn on.

No LOW BATTERY message displays.

4.4 Low Battery Test

Set voltage to 10.5V.

LOW BATTERY message displays within 30 seconds.

4.5 Set voltage to 10.2V. REPLACE BATTERY message displays within 30 seconds.

4.6 Turn the unit off.

Record your results on the Maintenance Test Checklist.



Battery Well

15 Amp

Supply



Red

Black
