R Series Service Manual

1-12 9650-0903-01 Rev. L

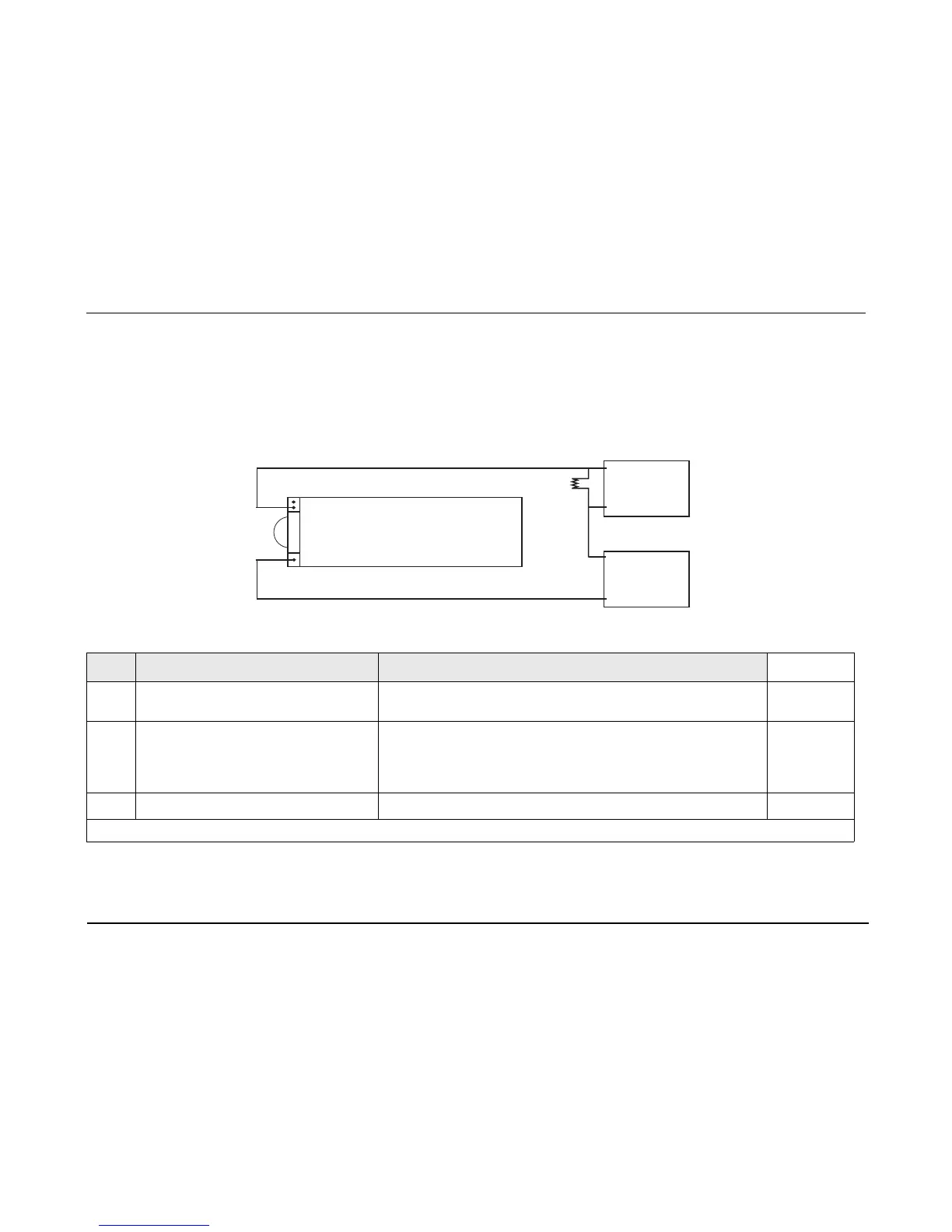

Test Setup:

1. Remove red lead from power supply and connect to 0.1

resistor.

Connect other end of resistor to “+” terminal of power supply using a second red lead.

3. Connect multimeter across the resistor.

4. Set voltage scale (if DVM is not autoranging) to 220 mV.

Do this... Observe this... Pass/Fail/NA

4.7 System Current Test

Set power supply to 10.8V.

4.8 Turn the selector switch to MONITOR. Voltage across resistor should be 145 mV or less (<1.2A of ON current).

NOTE: Without optional parameters.

All devices with SpO

, EtCO

or NIBP <160mV

ooo

4.9 Turn unit off.

Record your results on the Maintenance Test Checklist.

15 Amp

Supply



DMM



Battery Well

Red

Black
