Defibrillation Event Format
The summary report function records 6 seconds of pre-shock and 9 seconds of post-shock
patient ECG data. Also recorded are joules selected, joules delivered, Sync if active (includes
Sync markers), ECG lead, ECG size, patient current, defib impedance, actual time and date.
The date/time printed on the top of the strip corresponds to the ECG data occurring 6 seconds
before the event.

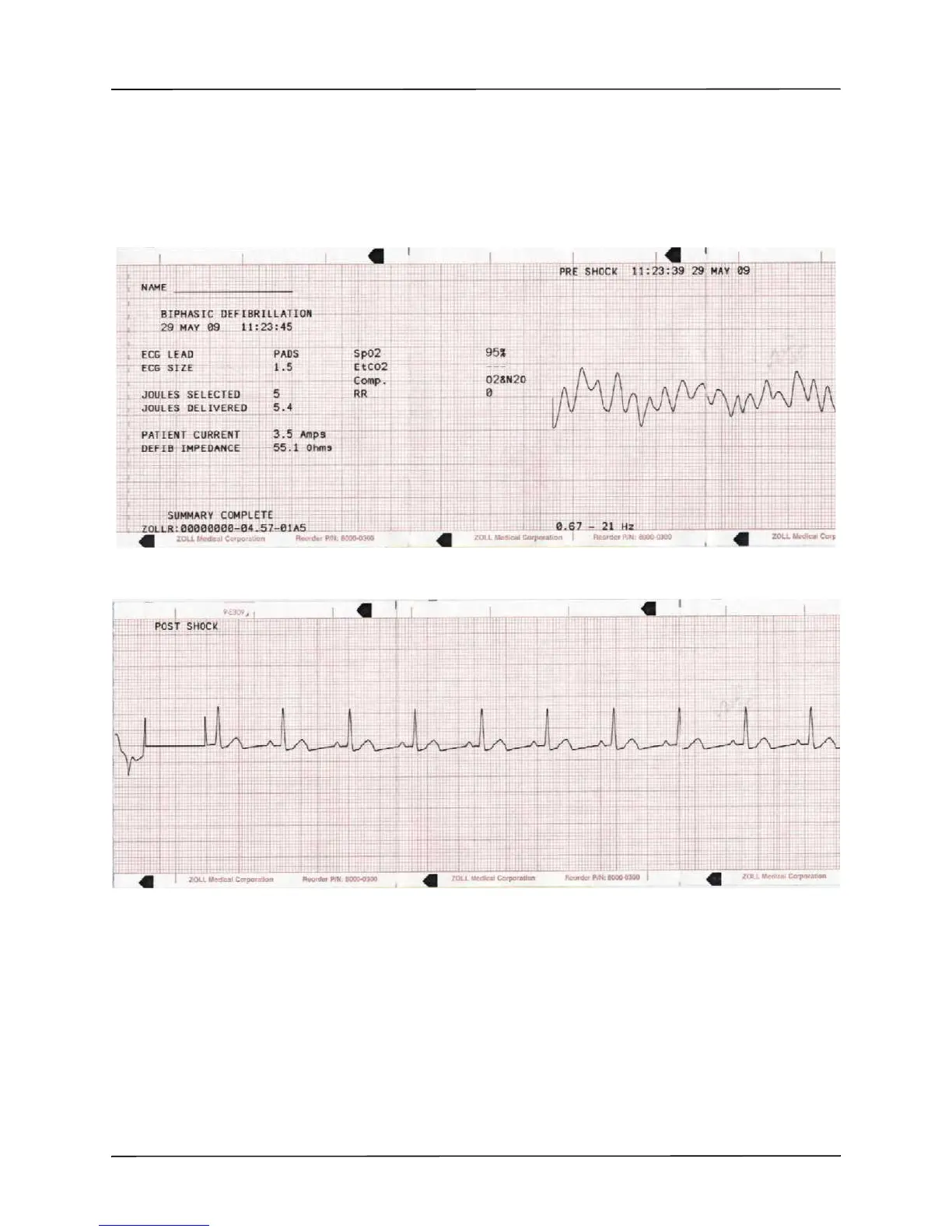

Figure 10-2. Defibrillation Event Format (Pre-Shock)
Figure 10-3. Defibrillation Event Format (Post Shock)

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
