ZOLL R Series Service Manual

CHAPTER 10 EVENT RECORDS AND REPORTS
10–4 www.zoll.com 9650-0912-01 Rev. N
Pacer Mode Selected Format
The summary report function records 6 seconds of pre-pace patient ECG data. Also recorded
are the ECG lead, ECG size, patient's heart rate, pace rate, pace current, time and date. The
date/time printed on the top of the strip corresponds to the ECG data occurring 6 seconds before
the event.

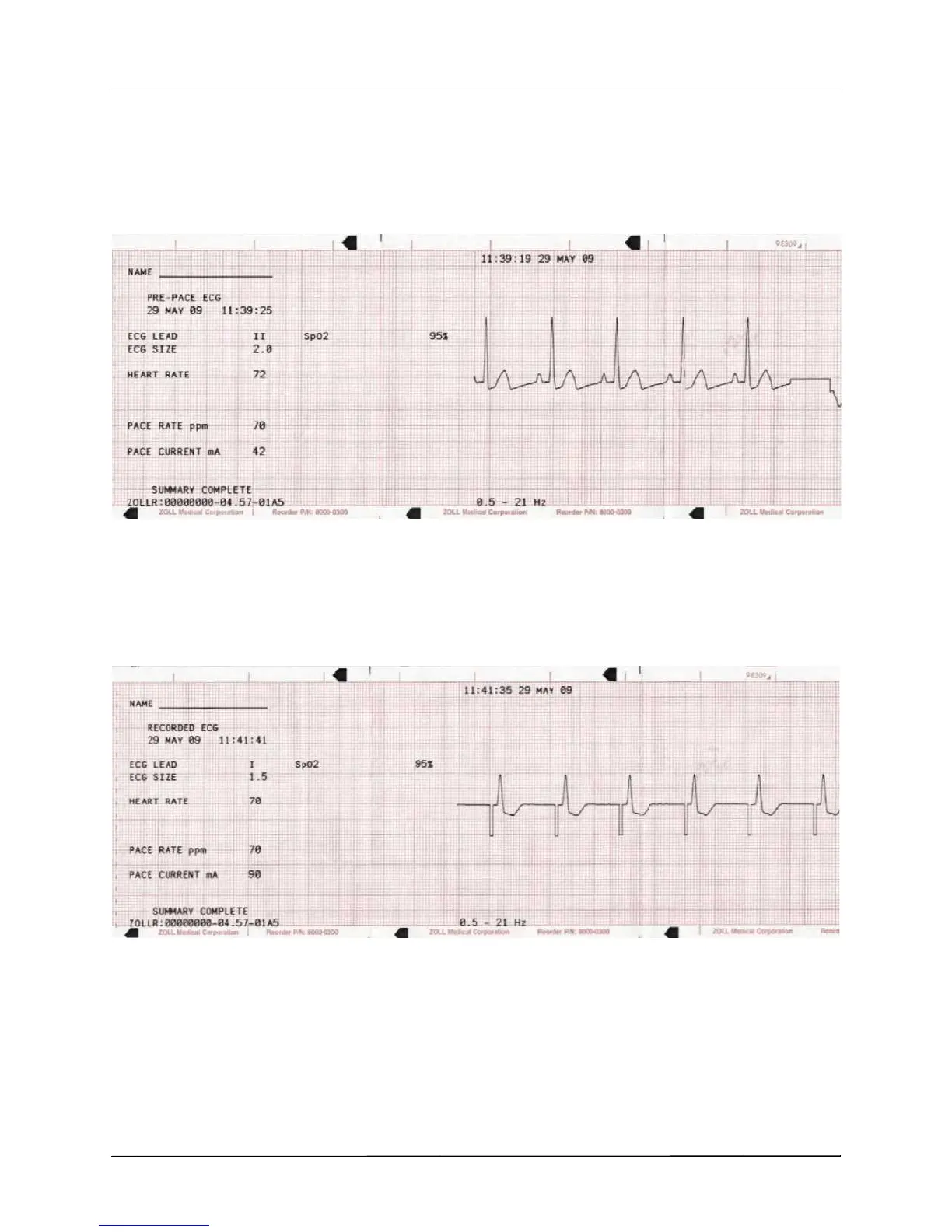

Figure 10-4. Pacer Mode Selected Format
After establishing a paced rhythm, turning the recorder on briefly records the paced rhythm for
later reports. If Async pace is active, the annotation ASYNC PACE is also recorded and printed.
The date/time printed on the top of the strip corresponds to the ECG data occurring 6 seconds
before the event.
Figure 10-5. Pacer Mode Selected Format (Asynchronous Pacing)

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
