ZOLL R Series Service Manual

R Series Service Manual
3-8 9650-0903-01 Rev. L

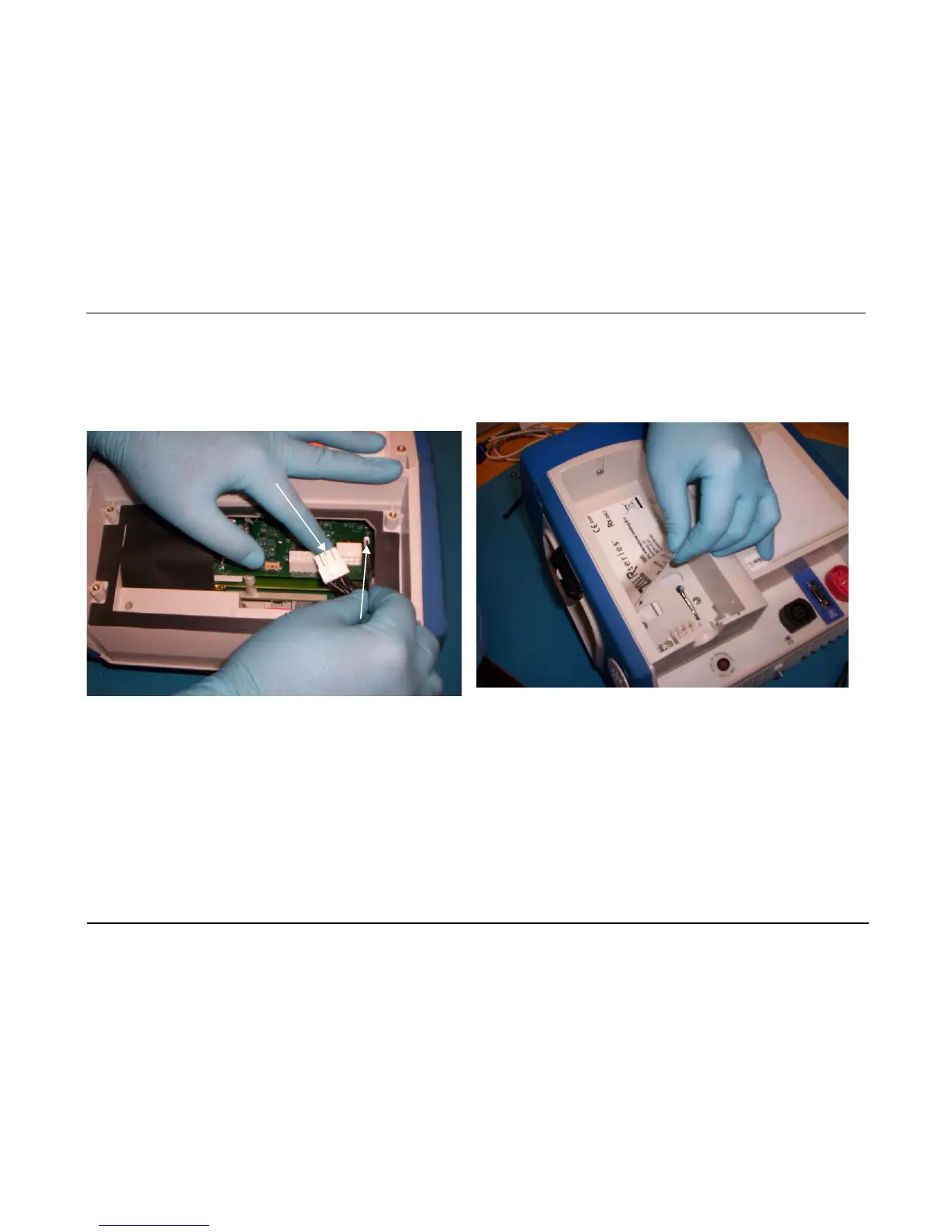

3. If removing the battery well, disconnect the high and
low current cables from the PD Engine as shown.
4. Remove the label from the battery well as shown (peel
from back to front).
Note: It may be necessary to use a new label upon
reassembly (Part # 9305-0901-01).
Low current harness
High current harness

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
