ZOLL R Series Service Manual

R Series Service Manual
3-30 9650-0903-01 Rev. L
Removing the SpO
2
Module

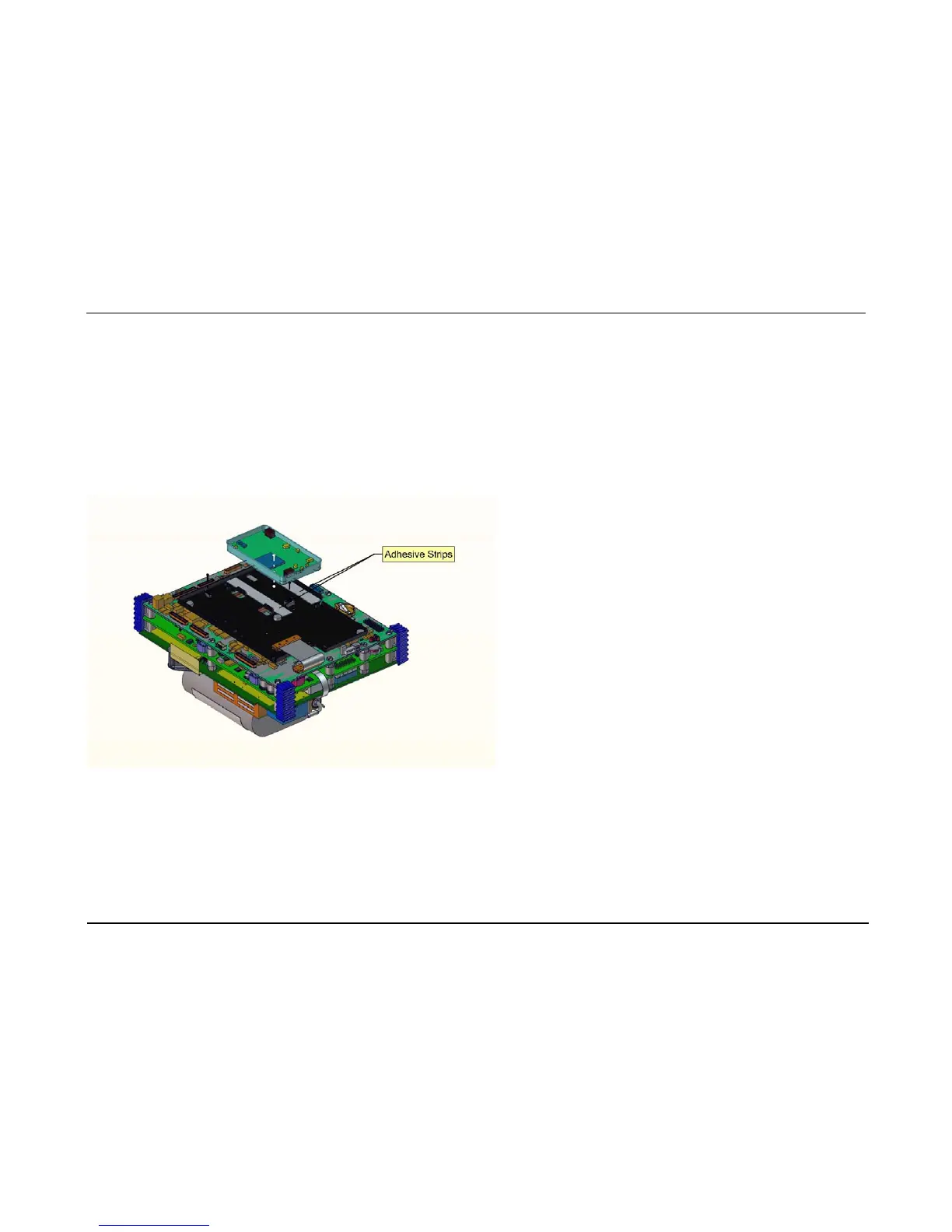

1. Use a prying tool to lift up on the board to release
adhesive. (The SpO
2
module is held in place with
adhesive strips.)
Note: Plastic isolator tray, part # 9310-0889, may be damaged
during disassembly and need to be replaced.

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
