1-22
z Enter the primary server UDP port number 1813.
z Select active as the primary server status.
z Click Apply to finish the operation.
# Configure the scheme to be used for communication between the switch and the RADIUS servers.
z Select the RADIUS Setup tab to enter the RADIUS parameter configuration page.

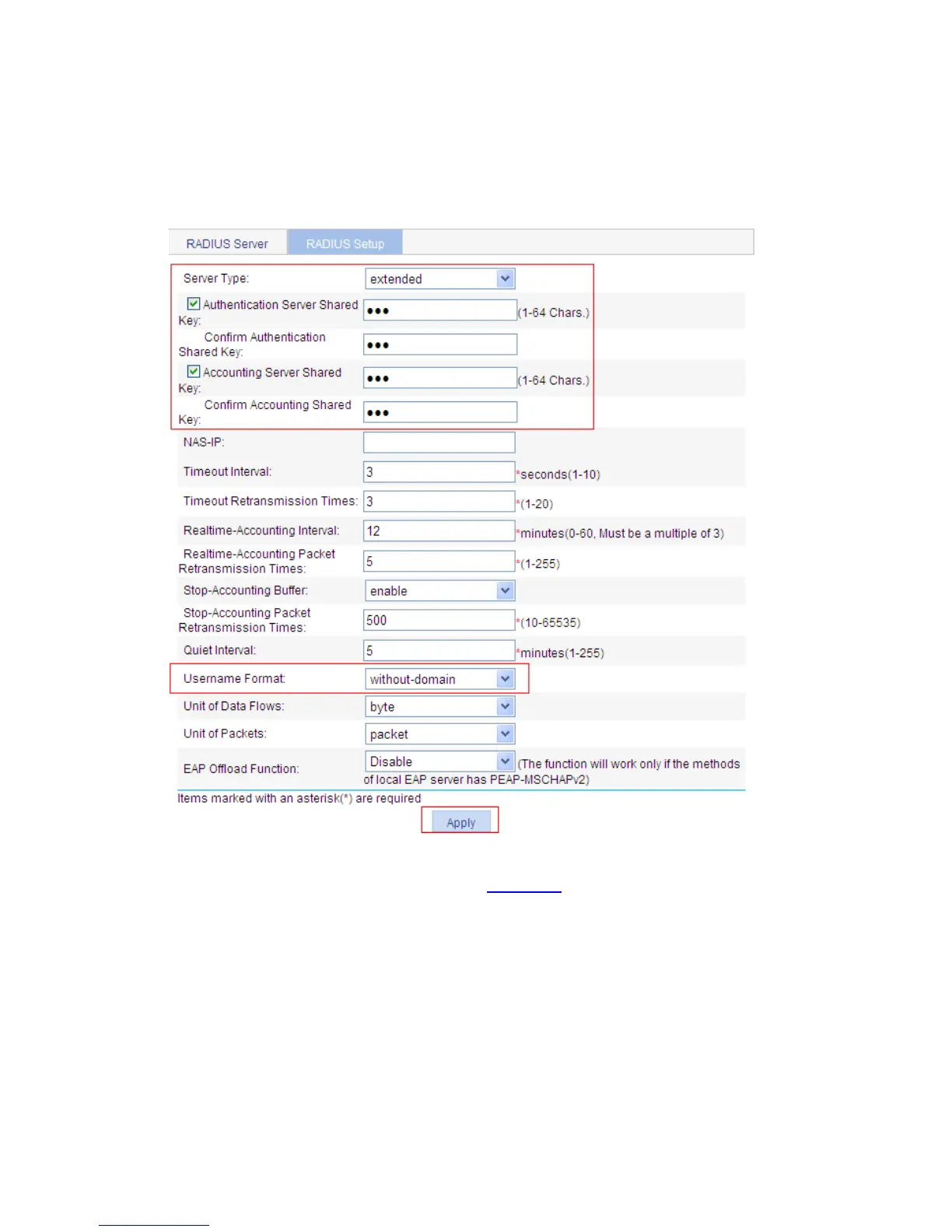

Figure 1-26 RADIUS parameter configuration
Perform the following configurations as shown in
Figure 1-26.
z Select extended as the server type.
z Select the Authentication Server Shared Key checkbox, and enter abc in the textbox.
z Enter abc again in the Confirm Authentication Shared Key textbox.
z Select the Accounting Server Shared Key checkbox, and enter abc in the textbox.
z Enter abc again in the Confirm Accounting Shared Key textbox.
z Select without-domain as the username format.
z Click Apply to finish the operation.
3) Configure AAA
# Create an ISP domain.
z From the navigation tree, select Authentication > AAA. The domain setup page appears.
