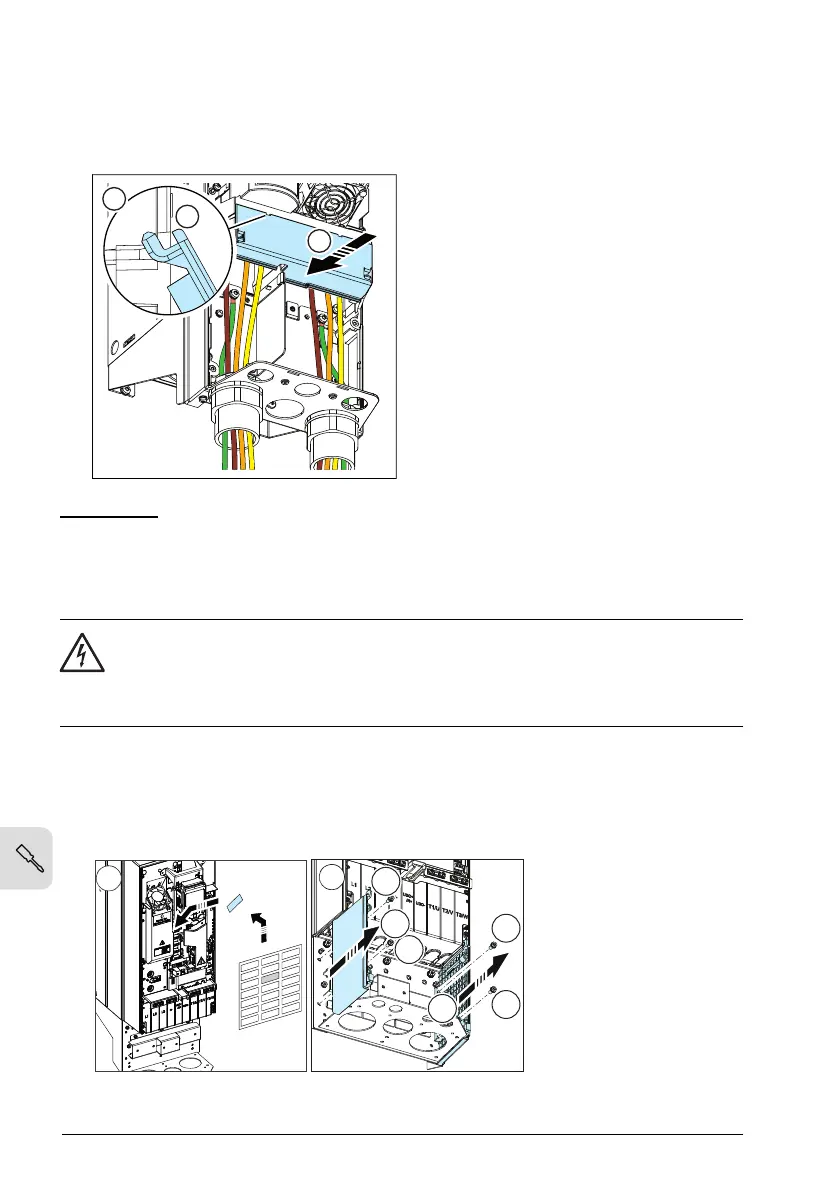

12. Reinstall the shroud on the power terminals by putting the tabs at the top of the
shroud in their counterparts on the drive frame (12a) and then pressing the shroud
in place (12b).
Finalization
13. Secure the conduits outside the unit mechanically.
￭ Connection procedure, frames R6…R9
WARNING!
If you install the drive on any other system than symmetrically grounded TN-S
system, see see Grounding system compatibility check (page 166) if you have to
disconnect the EMC filter and ground-to-phase varistor.
1. Attach the residual voltage warning sticker in the local language next to the control
unit.
2. Remove the side plates of the cable box: Remove the retaining screws (2a) and
slide the walls out (2b).
182 Electrical installation – North America
