ABB ACS880 - Page 190

Def / Type
FbEq 16b / 32b
DescriptionName / Range /
Selection
No.
1 = 1 / 1000 = 1Scaled value of analog input AI1.-32768.000 ...
32767.000
V / uint16Selects the unit for readings and settings related to analog
input AI1.
Note: This setting must match the corresponding hardware
setting on the drive control unit (see the hardware manual
of the drive). Control board reboot (either by cycling the
power or through parameter 96.8 Control board boot) is
required to validate any changes in the hardware settings.
AI1 unit selection12.15
2Volts.V
10Milliamperes.mA

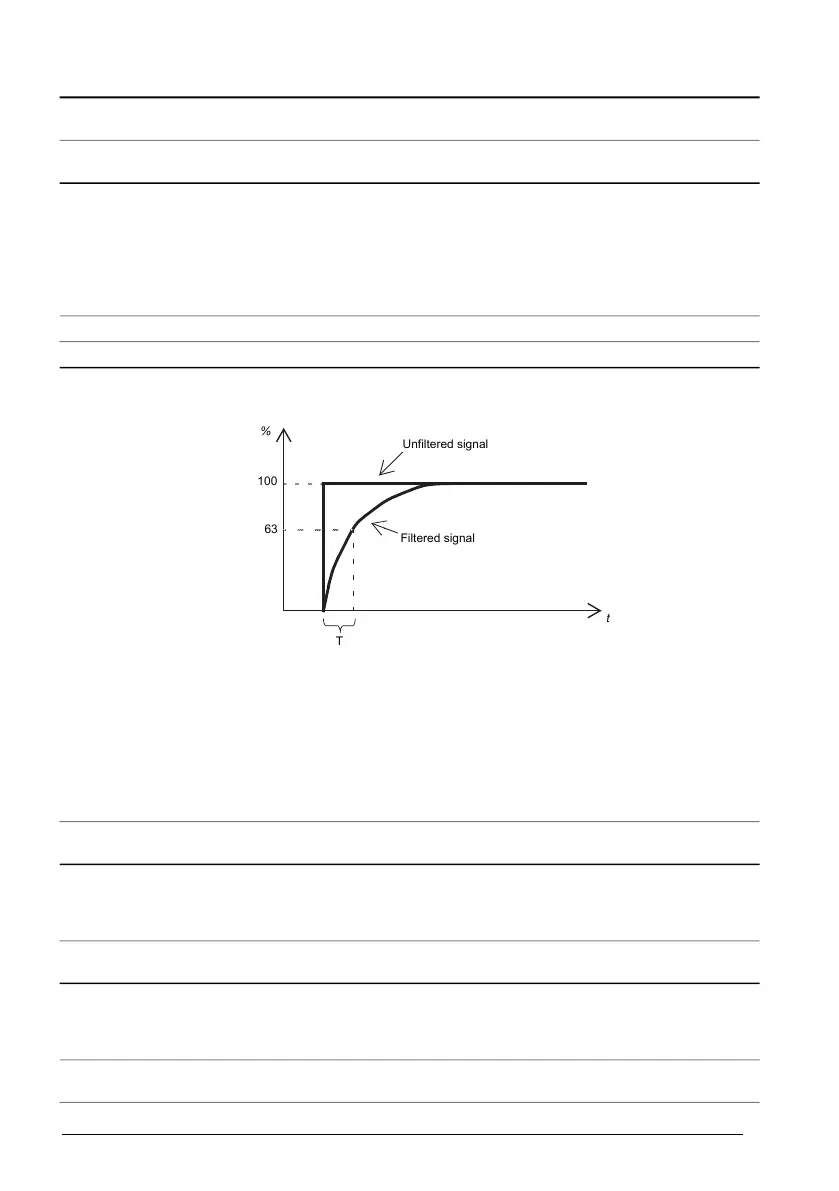

0.100 s / real32Defines the filter time constant for analog input AI1.
Unfiltered signal
Filtered signal
%
t
100
63
T
O = I × (1 - e
-t/T
)
I = filter input (step)
O = filter output
t = time
T = filter time constant
Note: The signal is also filtered due to the signal interface
hardware (approximately 0.25 ms time constant). This
cannot be changed by any parameter.
AI1 filter time12.16
1000 = 1 s / 1000 = 1
s
Filter time constant.0.000 ... 30.000 s
0.000 mA or V / real32Defines the minimum site value for analog input AI1.
Set the value actually sent to the drive when the analog
signal from plant is wound to its minimum setting.
See also parameter 12.1 AI tune.
AI1 min12.17
1000 = 1 mA or V /
1000 = 1 mA or V
Minimum value of AI1.-22.000 ... 22.000 mA
or V
20.000 mA or V /
real32
Defines the maximum site value for analog input AI1.
Set the value actually sent to the drive when the analog
signal from plant is wound to its maximum setting.
See also parameter 12.1 AI tune.
AI1 max12.18
1000 = 1 mA or V /
1000 = 1 mA or V
Maximum value of AI1.-22.000 ... 22.000 mA
or V
190 Parameters
