Def / Type
FbEq 16b / 32b
DescriptionName / Range /
Selection
No.
3
Digital input DI2 (10.2 DI delayed status, bit 1).
DI2
4
Digital input DI3 (10.2 DI delayed status, bit 2).
DI3
5
Digital input DI4 (10.2 DI delayed status, bit 3).
DI4
6
Digital input DI5 (10.2 DI delayed status, bit 4).
DI5
7
Digital input DI6 (10.2 DI delayed status, bit 5).
DI6
10
Digital input/output DIO1 (11.2 DIO delayed status, bit 0).
DIO1
11
Digital input/output DIO1 (11.2 DIO delayed status, bit 1).
DIO2
30
DIIL input (10.2 DI delayed status, bit 15).
DIIL
Source selection See Terms and abbreviations (page 132).
Other [bit]
Selected / uint32Selects the source of the positive speed enable command.
1 = Positive speed enabled.
0 = Positive speed interpreted as zero speed reference.

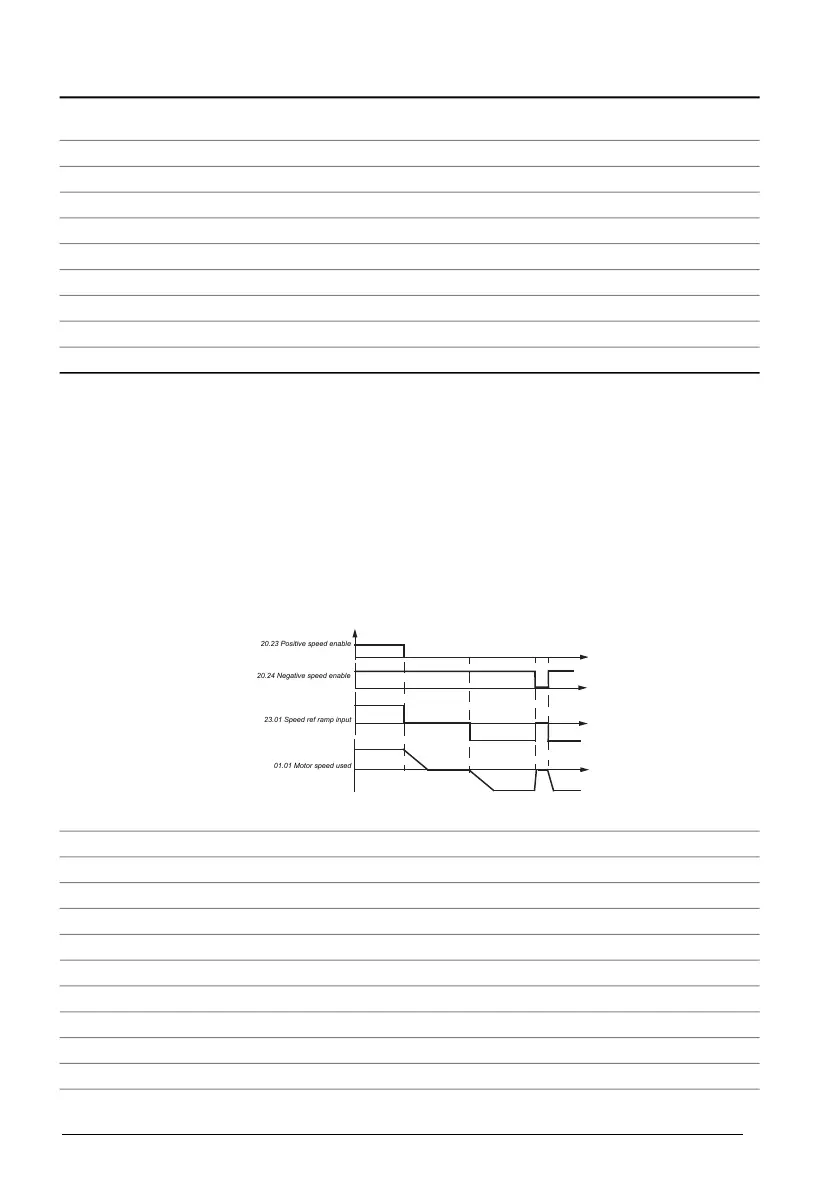

In the figure below, 23.1 Speed ref ramp input is set to zero
after the positive speed enable signal has cleared.
Actions in different control modes:
Speed control: Speed reference is set to zero and the motor
ramps down along the currently active deceleration ramp.
The drive keeps modulating. The rush controller prevents
additional torque terms from running the motor in the
positive direction.
Torque control: The rush controller monitors the rotation
direction of the motor.
20.23 Positive speed enable
20.24 Negative speed enable
23.01 Speed ref ramp input
01.01 Motor speed used
Positive speed enable20.23
00Not selected
11Selected
2
Digital input DI1 (10.2 DI delayed status, bit 0).
DI1
3
Digital input DI2 (10.2 DI delayed status, bit 1).
DI2
4
Digital input DI3 (10.2 DI delayed status, bit 2).
DI3
5
Digital input DI4 (10.2 DI delayed status, bit 3).
DI4
6
Digital input DI5 (10.2 DI delayed status, bit 4).
DI5
7
Digital input DI6 (10.2 DI delayed status, bit 5).
DI6
10
Digital input/output DIO1 (11.2 DIO delayed status, bit 0).
DIO1
11
Digital input/output DIO2 (11.2 DIO delayed status, bit 1).
DIO2
