ABB CL Series User Manual

Wiring with the display system
218
1SVC 440 795 M1100
Switching at the weekend
Time switch HW02 switches on at 16:00 on Friday and
switches off at 6:00 on Monday.

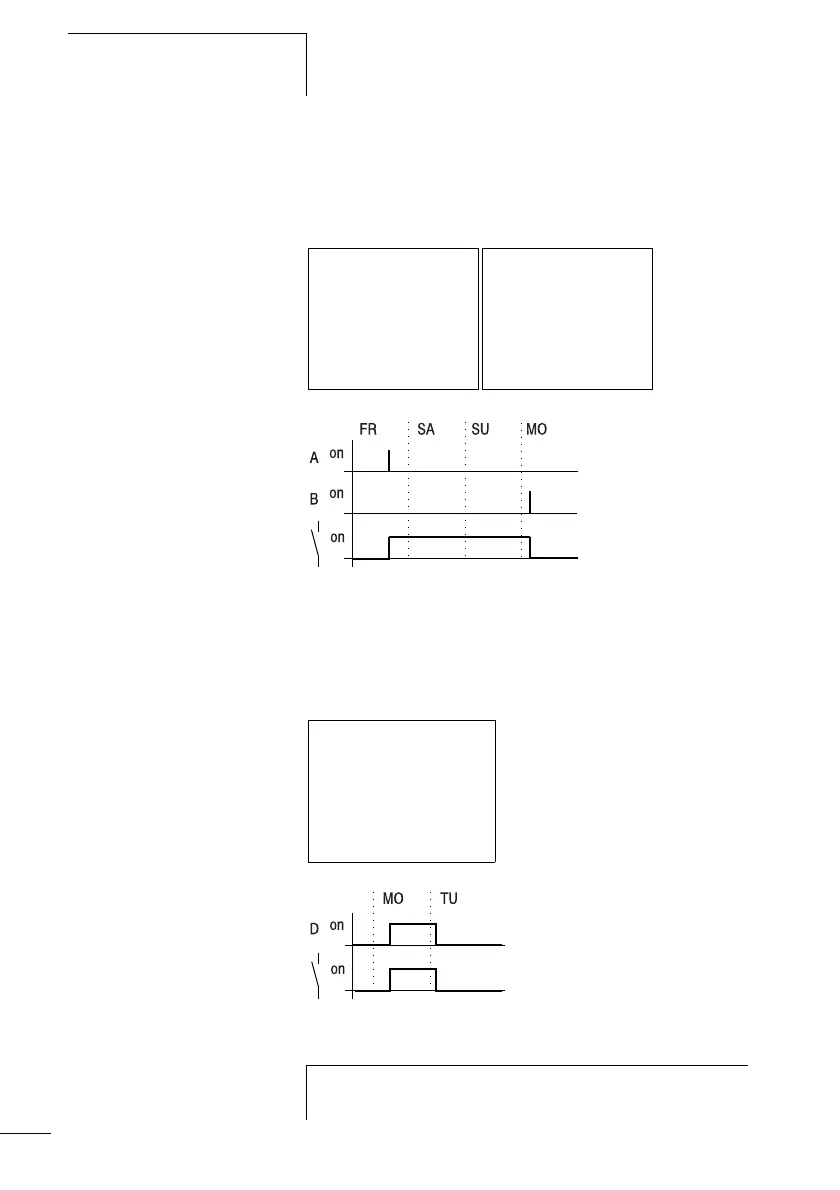

Figure: 115: Signal diagram of “weekend”
Overnight switching
Time switch HW03 switches on overnight at 22:00 Monday
and switches off at 6:00 on Tuesday.
Figure: 116: Signal diagram for night switching
HW02 A +
>DY1 FR
>DY2
>ON 16:00
>OFF
HW02 B +
>DY1 MO
>DY2
>ON
>OFF 06:00
HW03 D +
>DY1 MO
>DY2
>ON 22:00
>OFF 06:00
h
If the off time is before the on time, the display system will
switch off on the following day.

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
