ABB CL Series User Manual

Installation
30
1SVC 440 795 M1100
For ease of wiring, leave a gap of at least 3 cm between the
display system terminals and the wall or adjacent devices.

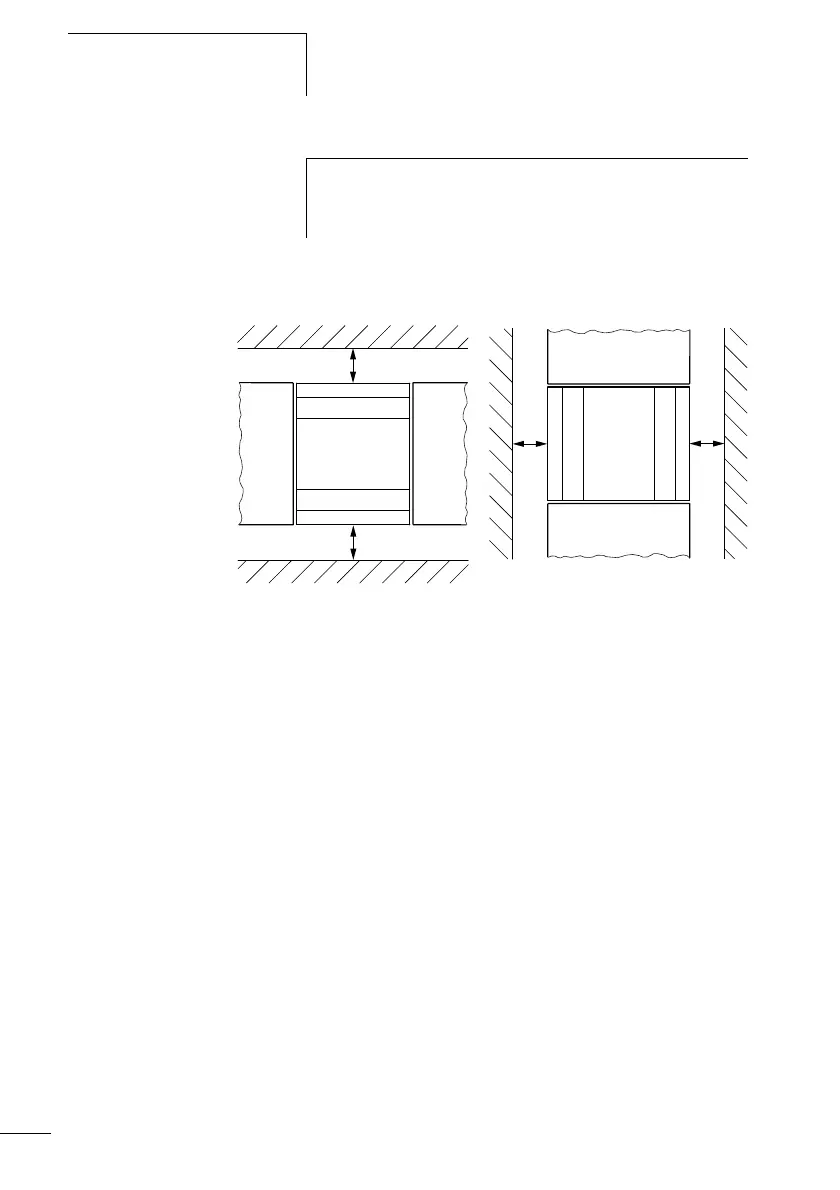

Figure: 4: Clearances to the display system
Mounting the protective cover CL-LAD.FD001
For special applications such as in the food industry, the
operating unit must be protected against the ingress of dust,
liquids etc.
Use the appropriate protective cover CL-LAD.FD001.
Fit the CL-LAD.FD001 protective cover before mounting the
display module.
h
When using the display system with expansion units,
connect the expansion concerned before mounting
(a page 46).
30
30
30
30
