ABB CL Series User Manual

Loading and saving programs
383
1SVC 440 795 M1100

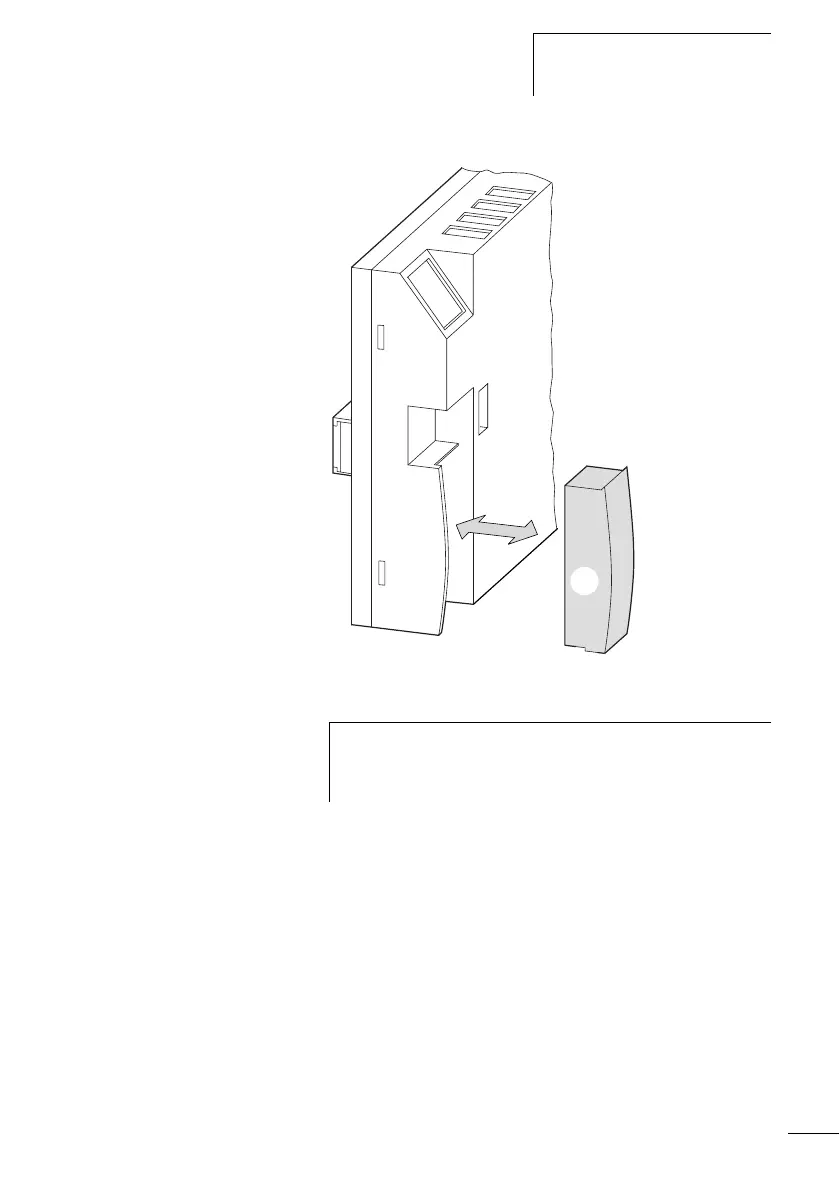

Figure: 195: Inserting and removing memory module
Loading or saving circuit diagrams
You can only transfer circuit diagrams in STOP mode.
When a memory module is fitted to display system versions
without a keypad and display, these devices transfer the
circuit diagram automatically from the memory module to
CL-LDC.L.. The circuit diagram in the display system is
retained if the circuit diagram on the memory module is
invalid.
b
h
With the display system you can insert and remove the
memory module even if the power feed is switched on,
without the risk of losing data.

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
