Mounting the display base module
If you wish to add expansion units to the display base
module, the top-hat rail must be fitted beforehand.
Fitting the top-hat rail
Ensure that the cutout of the top-hat rail was prepared for
the fixing shafts according to the specified dimensions.

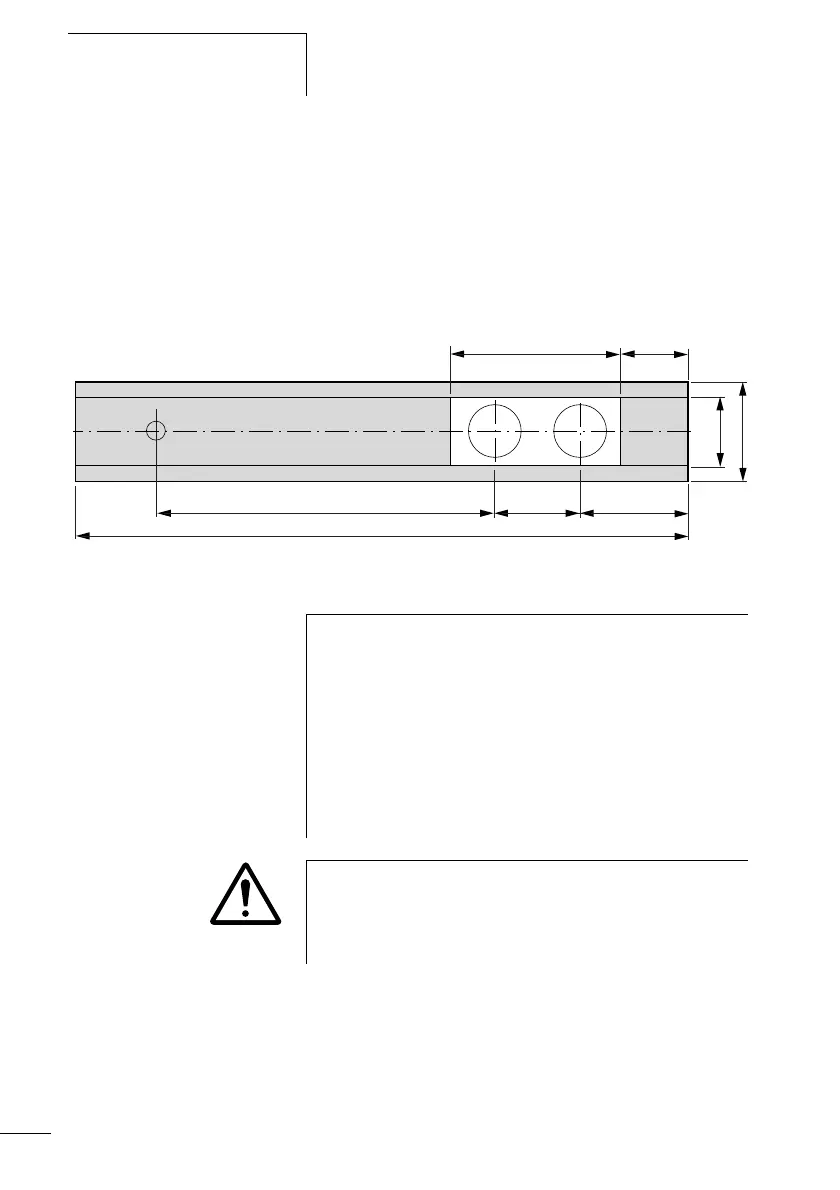

Figure: 15: Top-hat rail with cutout
Attach the expansion unit before fitting the top-hat rail.
24
35
38.75120
216
23.7560
30
g0.2
h
The two fixing shafts of the display module are
mechanically designed for a 2 space unit expansion
module.
If you wish to fit wider expansion units, the top-hat rail
must be supported at a third support point.
This third support point should be located in the area
216 mm from the end of the device. It should not be
possible to twist the top-hat rail.
Caution!
The fixing shafts of the display/operating unit are designed
for mounting the expansion units. Other devices such as
contactors must not be mounted on this top-hat rail.
