Installation
42
1SVC 440 795 M1100
Removing the display base module
The display base can be removed with or without the display
I/O module

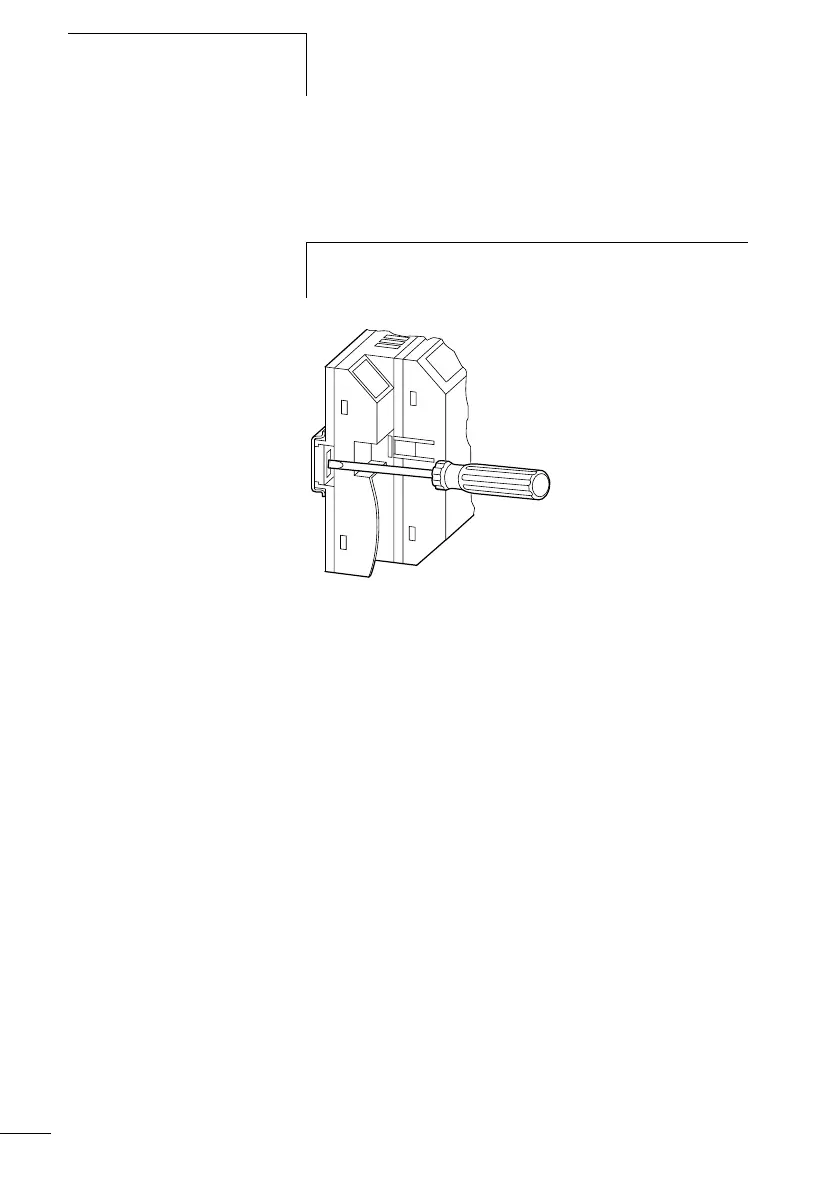

Figure: 22: Releasing the fixing shaft
Use a screwdriver with a 100 x 3.5 mm slot width.
X Insert the screwdriver into the lug of the fixing shaft catch.
X Lever out the slide catch.
X Pull out the display base module from the fixing shafts.
Mounting on top-hat rail
The display base module can be mounted without a display
module on a top-hat rail.
The fastening catches must be removed in order to mount
the device on a fastened top-hat rail.
h
If there is another fixing point for the top-hat rail that is
apart from the one for the display module, undo it.
