Mounting
41
1SVC 440 795 M1100

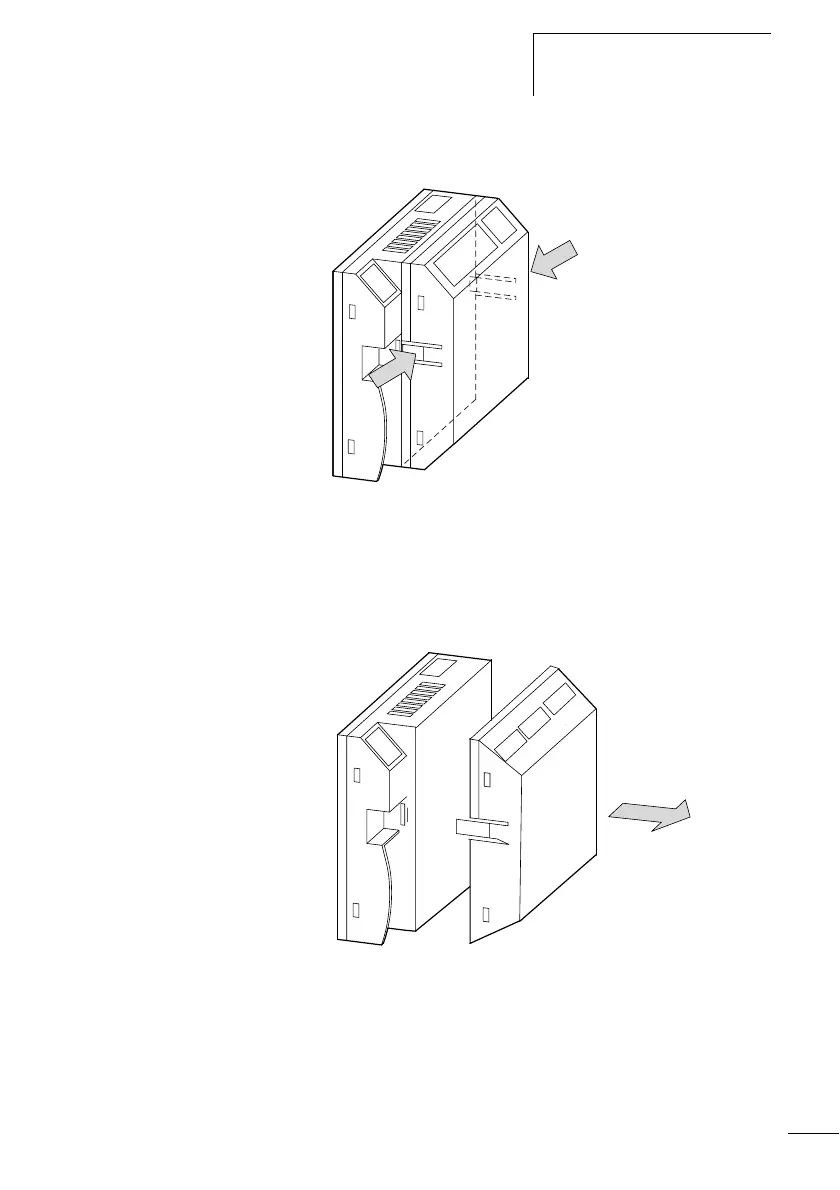

Removing the display module (flush mounting)
Figure: 20: Unlocking the display I/O module
X Press the two catches together.
X Pull one side out of the catch.
X Pull the other side out of the second catch.
Figure: 21: Removing the display I/O module
X Pull off the display I/O module.
