5.7 Data Output Format (Talker Format)
5-22
5.7 Data Output Format (Talker Format)
5.7.1 Normal Mode
The measurement data and the measurement data memory (RECALL) are read in the following format.

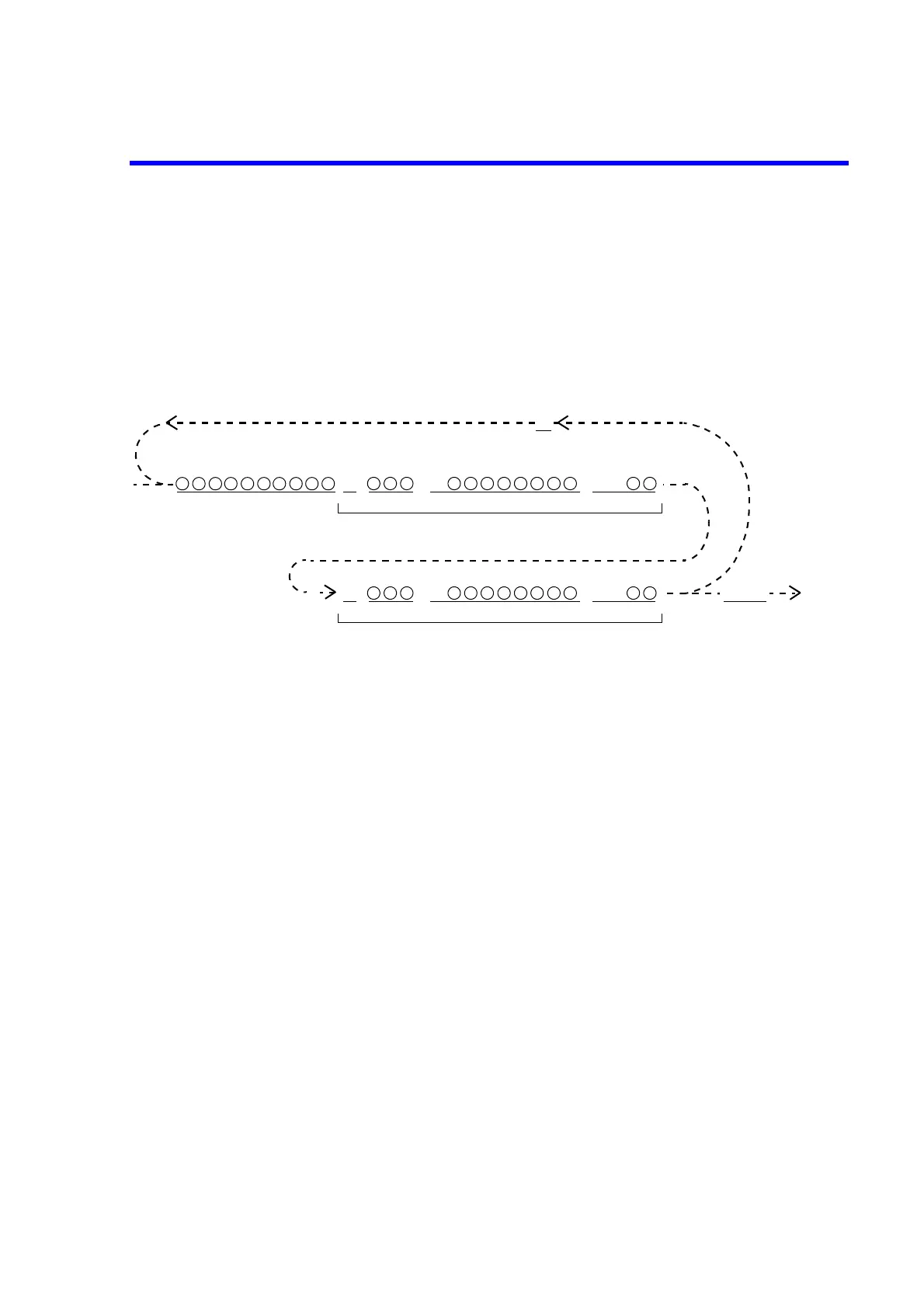

Time stamp
A clock value in milliseconds is output. It is counted every 10 milliseconds.
When the time stamp output is OFF, the following string delimiter 1 is also not output.
The clock value returns to “0” approximately 1,193 hours after the power ON.
It can be initialized by using the remote commands.
CRLF
B
Output
Multiple data reading
E ±
E
,
T
S1 H
±
D
E ±
E
,
S1 M
±
D
Measurement data
Source value monitor data
T: Time stamp (10-digit figure)
H: Header (main header characters + sub header of 1 character)
D: Mantissa part (polarity + decimal point + 7-digit figure)
E: Exponent part (E + polarity + 2-digit figure)
S1: String delimiter 1
S2: String delimiter 2
B: Block delimiter
M: Header (monitor main header characters + blank of 1 character)
;
S2
