9.8.8 Protocol KC-2S-U
TC-430™ can communicate with other on-board equipments exploiting the well-established Aesys® KC-2S-
U protocol (as specified in [2]).
Depending on configuration, the KC-2S-U protocol is server on RS-232, RS-485 and/or network interfaces
on UDP port 6002 (by default the KC-2S-U protocol is enabled on all the listed interfaces; please refer to
Aesys® technical support for disabling KC-2S-U on some interfaces).
Protocol KC-2S-U can be tweaked by accessing “Setup
Interfaces setup
Protocol KC-2S-U”.
9.8.8.1 Protocol version
TC-430™ can recognize both version 1.1.0.0 and 2.0.2.0 of the KC-2S-U protocol and can automatically
switch between the versions depending on commands received by the counterpart. Anyway the current
protocol version can be review/configured by accessing “Setup
Interfaces setup
Protocol KC-2S-U
Protocol version” (Figure 102)

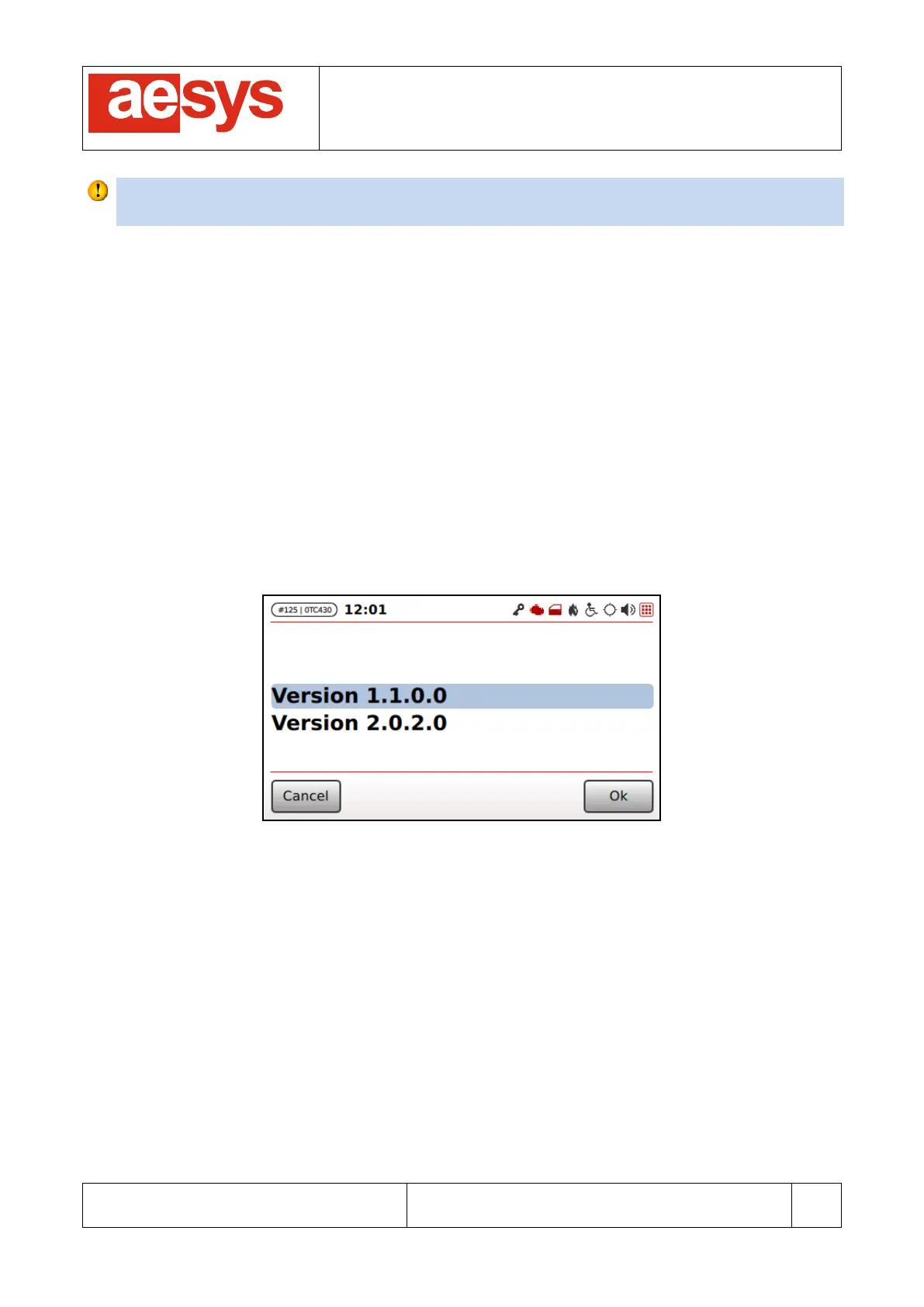

Figure 102: Protocol KC-2S-U version configuration
9.8.8.2 Internal sign type
For allowing the TC-430™ to exploit some features of the KC-2S-U protocol the type of the internal sign (if
any) has to be configure through “Setup
Interfaces setup
Protocol KC-2S-U
Internal sign type”
(Figure 103).
