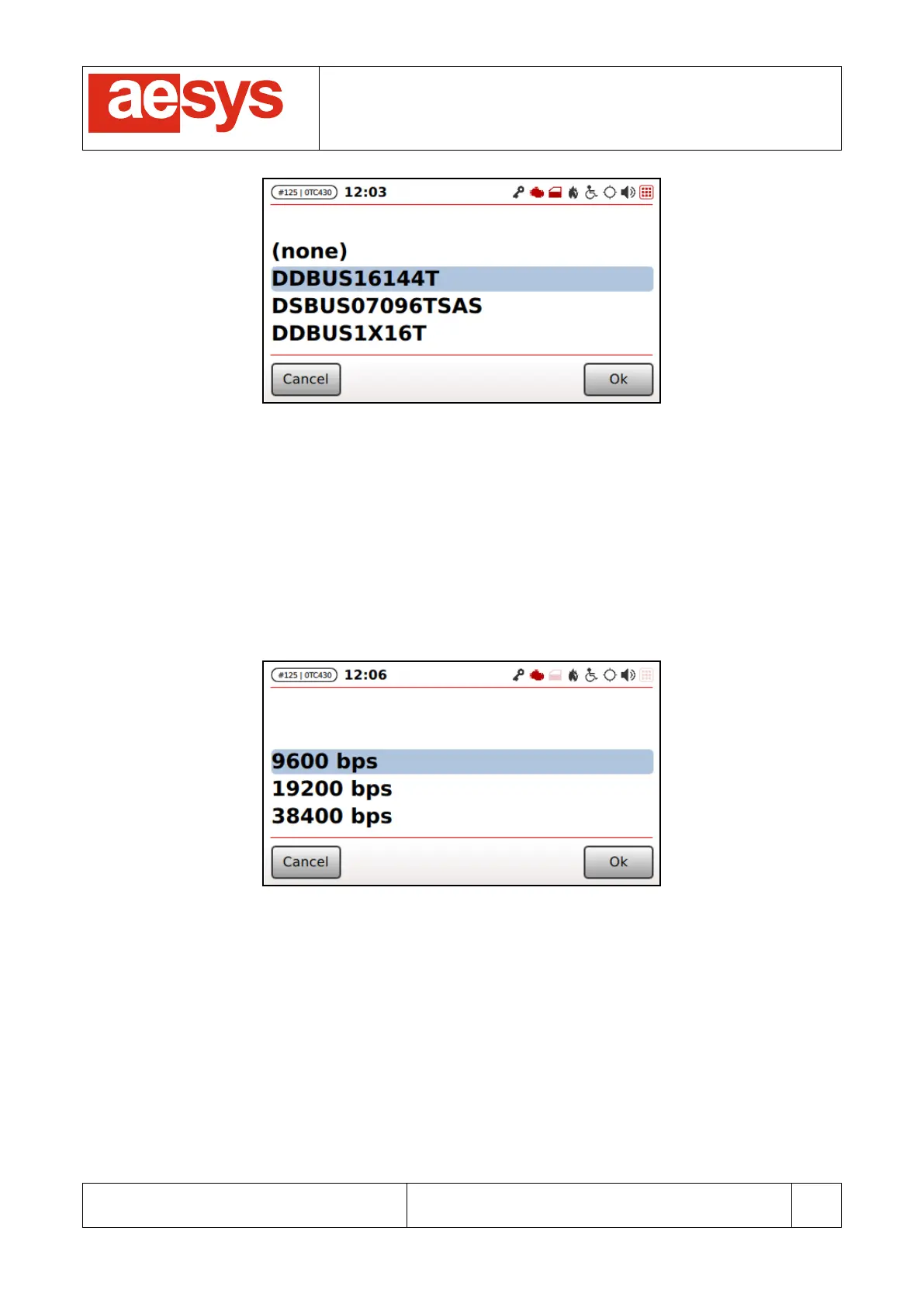

Figure 103: Protocol KC-2S-U internal sign type configuration
Please refer to Aesys® customer service for further support about internal sign type configuration.
9.8.8.3 Serial baud-rate
The baud-date being used by the KC-2S-U protocol while served over serial channel (RS-232 or RS-485)
can be respectively configured accessing “Setup  Interfaces setup  Protocol KC-2S-U  RS-232 baud
rate” and “Setup  Interfaces setup  Protocol KC-2S-U  RS-485 baud rate” (Figure 104).
Figure 104: Protocol KC-2S-U baud rate
Protocol KC-2S-U is normally served at 9600 bps over serial line.
9.8.9 J1708
TC-430™ support to J1708 protocol can be configured by accessing “Setup  Interfaces setup  J1708”.
9.8.9.1 Codes length
The length of destination, P/R codes and route text to be used while exchanging data with the J1708
counterpart can be configured by accessing “Setup  Interfaces setup  J1708  Codes length” (Figure
105).
