AGFA DR 600 - Page 50

Related Links
Radiation Protection on page 45
Scattered radiation (general radiography) on page 51

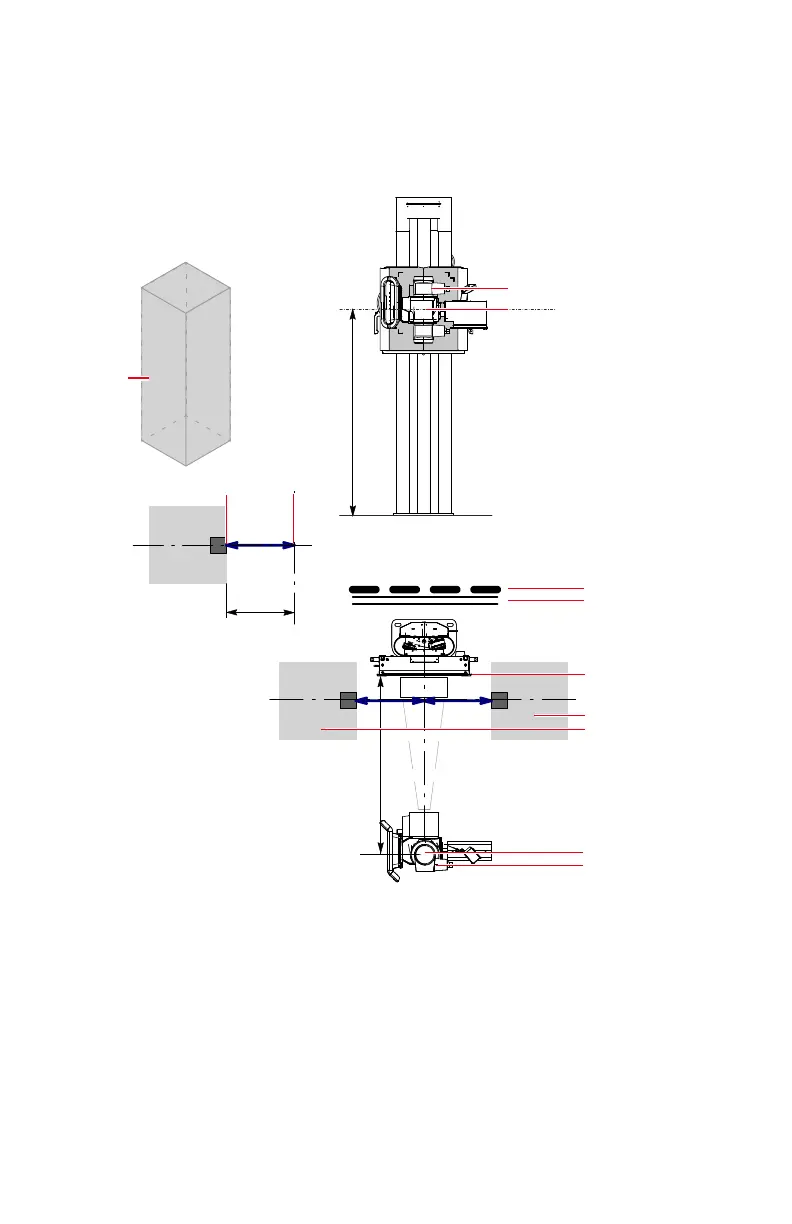

Significant zones of occupancy at the radiographic wall stand
140 cm
SID115 cm
Phantom
S1
S2
S
S
50 cm
1
2
3
4
2
5
6
7
2
1
8
9
1.
X-ray tube
2.
Focal spot label [—]
3.
Significant zone of occupancy.
Minimum area 60x60 cm.
Minimum height above the floor 200 cm.
4.
Dose meter
5.
Protective device
6.
Wall
7.
DR Detector or cassette
