8.
Significant zone of occupancy at the right side of the radiographic wall
stand
9.
Significant zone of occupancy at the left side of the radiographic wall
stand
Figure 19: Significant zones of occupancy at the radiographic wall stand
CAUTION:
The radiation protection has to be applied for the patient and for
the operator.
Related Links
Radiation Protection on page 45
Scattered radiation (general radiography) on page 51

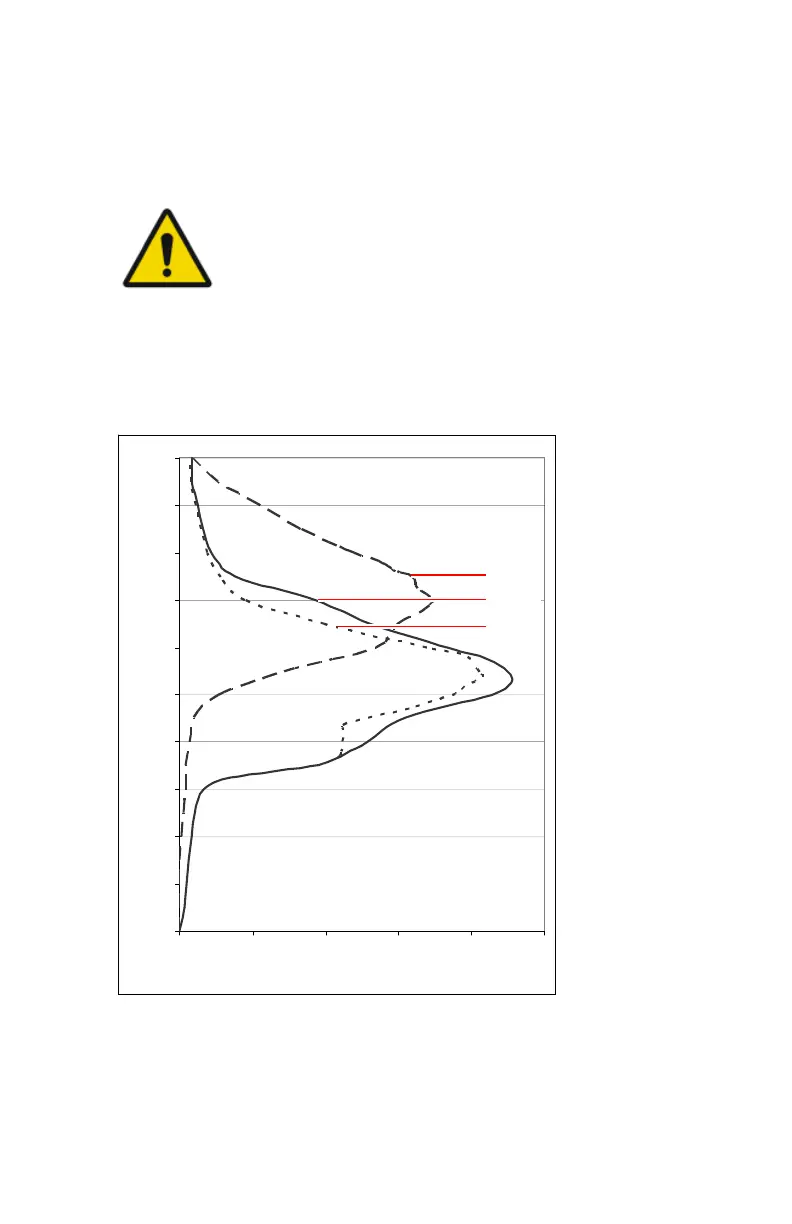

Scattered radiation (general radiography)
0
20
40
60
80
100
120
140
160
180
200
0 0,1 0,2 0,3 0,4 0,5
Kerma [uGy]
Distance to floor [cm]
S1,S2
S3
S4,S5
• S1,S2 (wall stand): 100 kV; SID 110 cm; tube/detector centre height
140cm over floor
• S3: 100 kV; SID 100 cm; table height of 70 cm (standard working height)
• S4,S5: 100 kV; SID 100 cm; table height of 70 cm (standard working
height)
Figure 20: Measurement of scattered radiation in zones of occupancy (Sx)
