Agilent Technologies 1290 Infinity II 2D-LC User Manual

2D-LC User Guide 77
4Installation
Hardware Installation

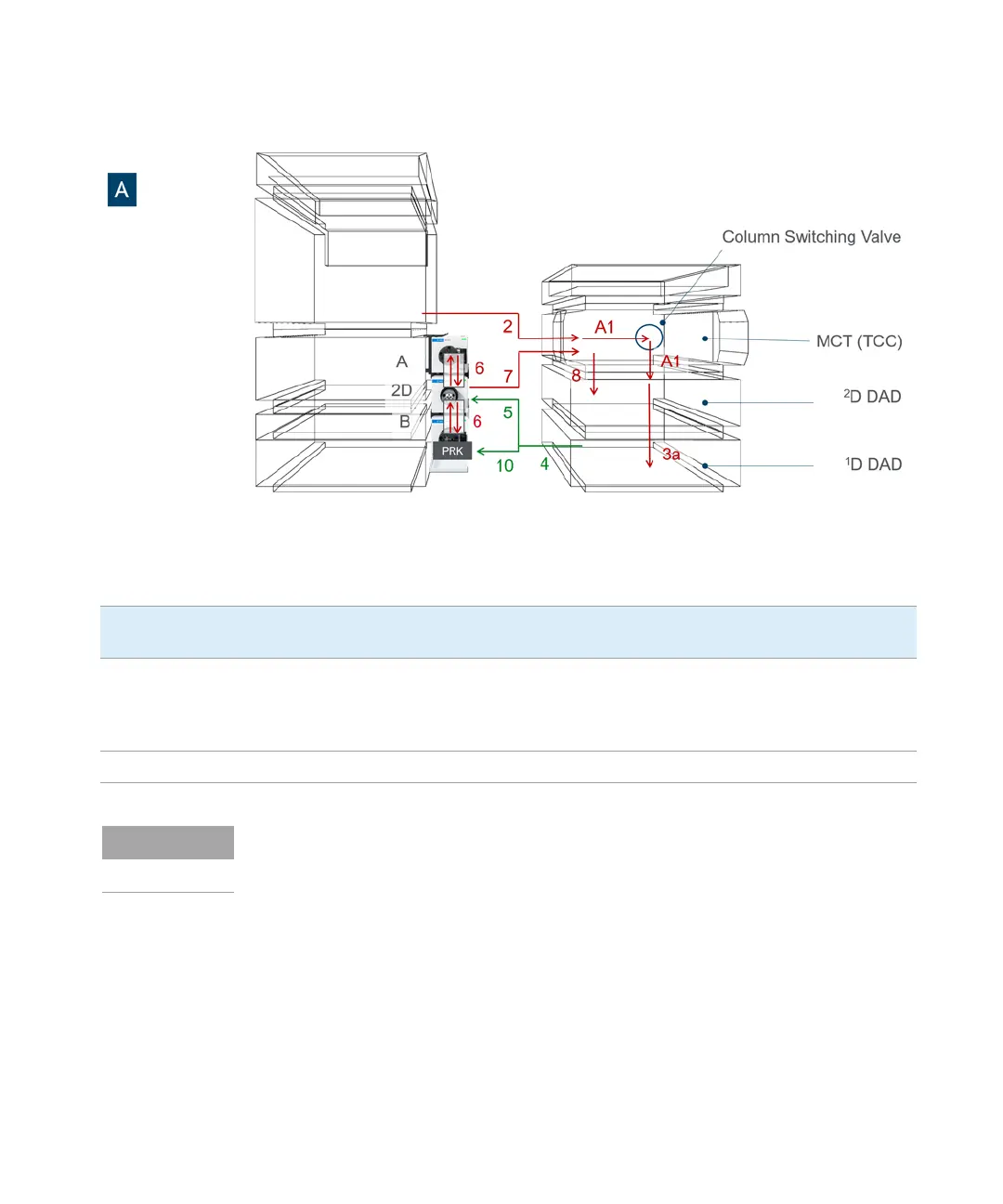

Figure 34 Setup A. Recommended setup if a column switching valve (for example
6-position/14-port InfinityLab Quick-Change Valve) is used. For a InfinityLab
2-position/6-port Quick-Change Valve, adapters A1 are not necessary.
Number of
Capillary
# Connection L x ID [mm] P/N Description
A1 2 Adapter: capillary 2 to column
switching valve, (Port IN) / Adapter
column switching valve (Port OUT) to
capillary 3a
75x0.12mm G1316-87326 SST Capillary 75x0.12mm,
f/m, ns 0.8 (must be
purchased separately)
For all other capillaries / connections, please refer to Figure 31 on page 73, Figure 32 on page 74, and Figure 33 on page 75.
NOTE
Adapters to and from the column switching valve are only necessary if a
6-position/14-port InfinityLab Quick-Change Valve or a for example
8-position/18-port InfinityLab Quick-Change Valve is used.
