4Installation
Hardware Installation
2D-LC User Guide 78

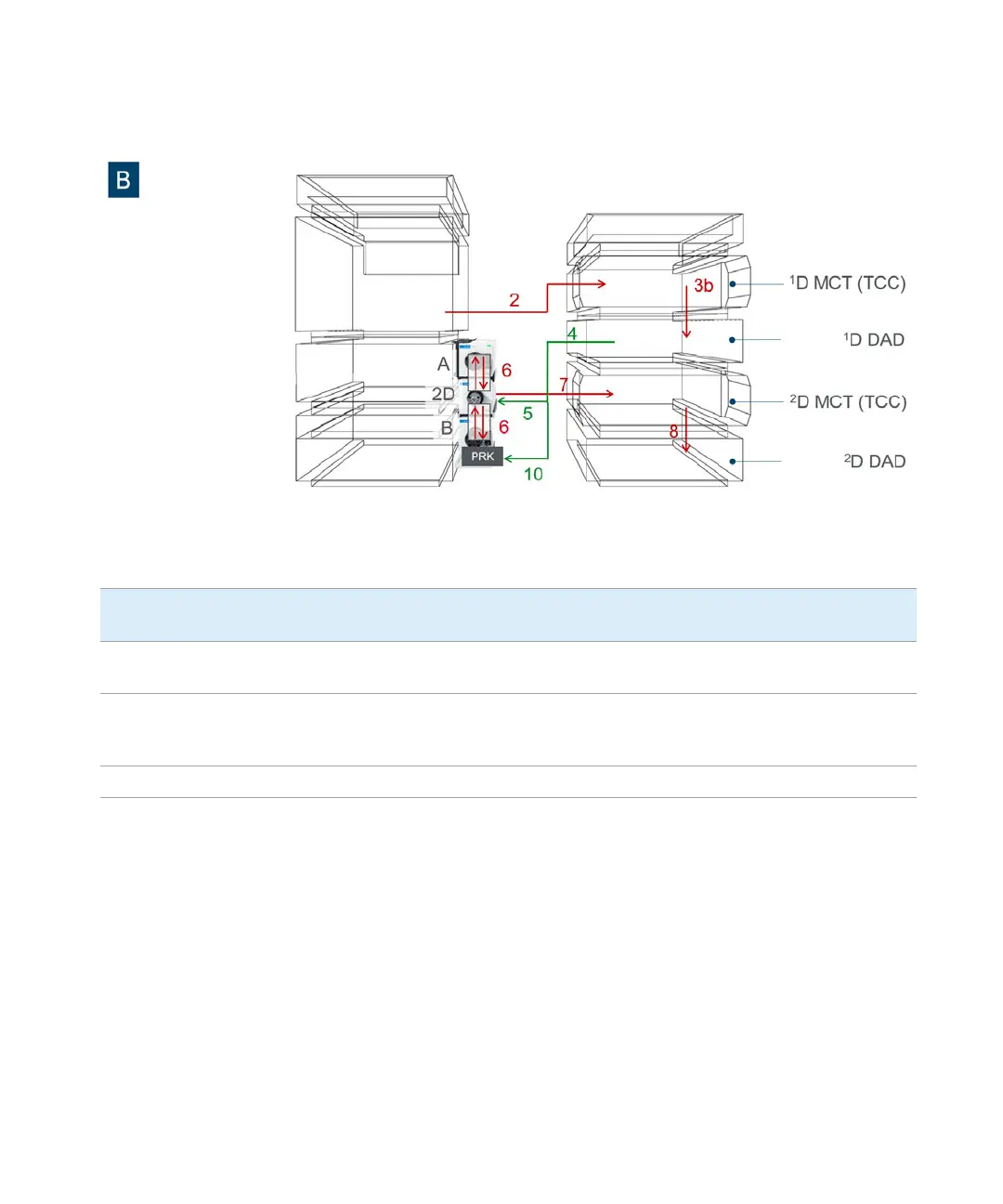

Figure 35 Setup B. Recommended setup if the instrument contains separate MCTs/ TCCs for
1
D
and
2
D columns.
Number of
Capillary
# Connection L x ID [mm] P/N Description
3b 1
1
D column to
1
D DAD
280 x 0.12 5067-4651 Capillary ST 0.12x280
SL/SX
81
2
D column (in
2
D MCT) to
2
D DAD
280 x 0.12 5067-4651 Capillary ST 0.12x280
SL/SX (part of 2D-LC
capillary kit)
For all other capillaries / connections, please refer to Figure 31 on page 73, Figure 32 on page 74, and Figure 33 on page 75.
