3-58 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Measurement Functions
Compliance

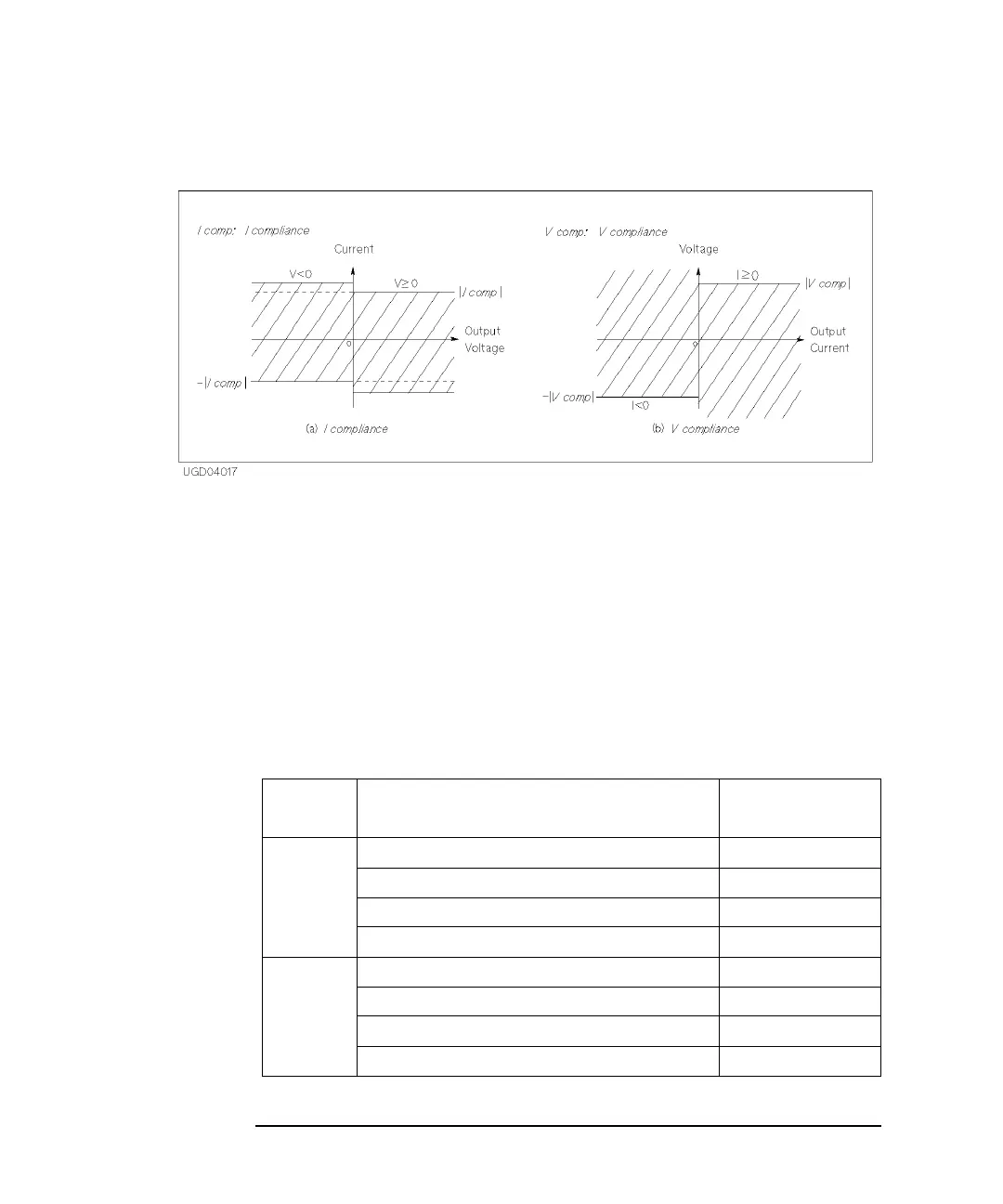

Figure 3-9 Relation of Compliance and Output
Current Complinace for COMMON Unit
If you set COMMON output mode for the unit, current compliance for the unit is
automatically set as follows and you cannot change the setting.
GNDU 1.6 A
HRSMU 105 mA
MPSMU 105 mA
HPSMU 1 A
Table 3-6 V Compliance Setting Range
Unit Output Range
V Compliance
Setting Range
HRSMU 10 pA to 10 mA 0 to 100 V
100 mA (0 £ | I | £ 20 mA) 0 to 100 V
100 mA (20 mA < | I | £ 50 mA) 0 to 40 V
100 mA (50 mA < | I | £ 100 mA) 0 to 20 V
MPSMU 1 nA to 10 mA 0 to 100 V
100 mA (0 £ | I | £ 20 mA) 0 to 100 V
100 mA (20 mA < | I | £ 50 mA) 0 to 40 V
100 mA (50 mA < | I | £ 100 mA) 0 to 20 V
