Agilent Technologies 4155B User Manual

4-34 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Making a Measurement
Sweep Measurements
To measure negative resistance characteristics
The 16441A R-Box allows SMUs to measure current-controlled negative resistance
(1 MW) characteristics.

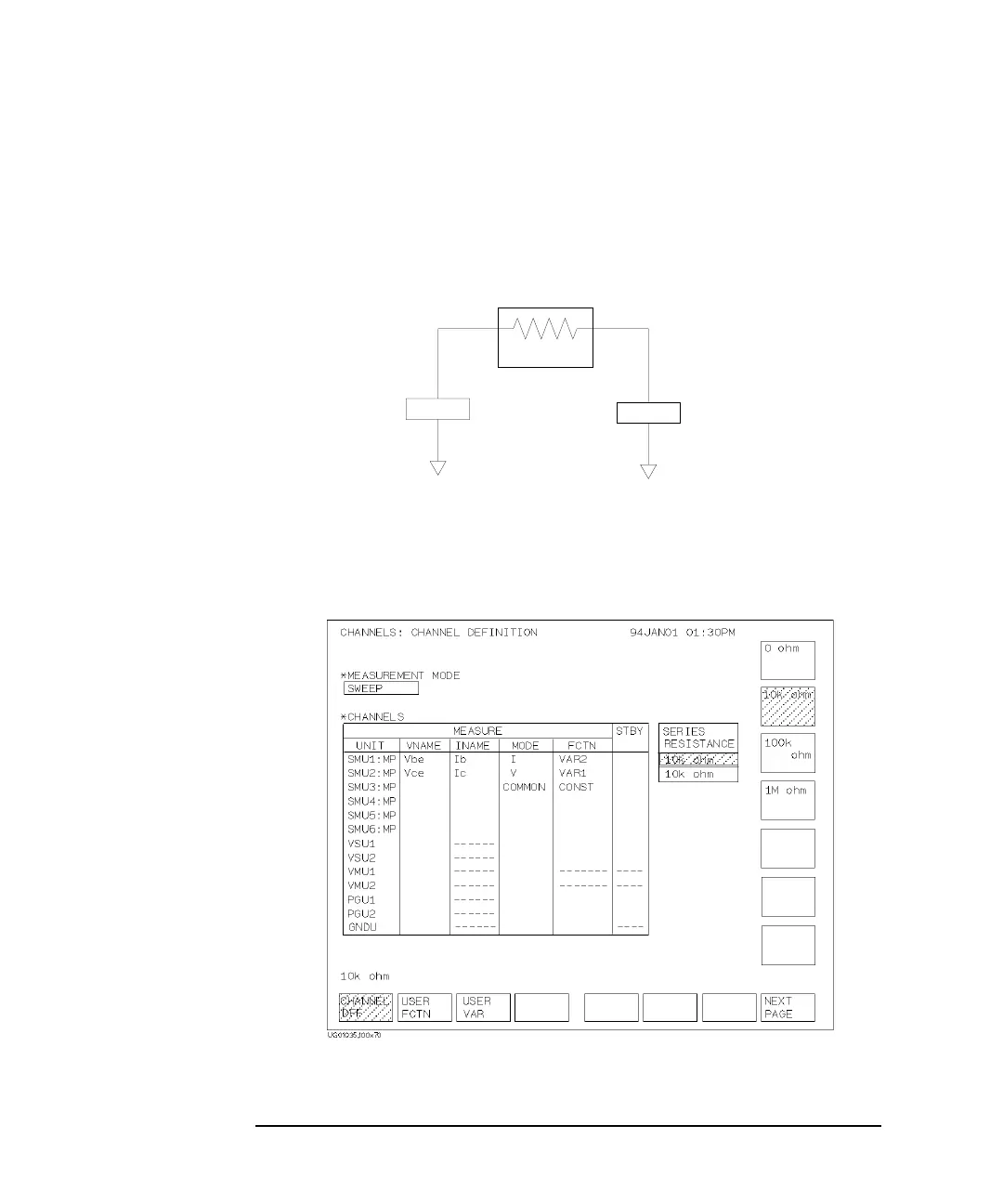

Connect the resistance of the 16441A as shown in following figure.
Example
The following figure shows an example setup to connect 10 kW resistance to SMU1
and SMU2.
SMU
16441A R-Box
DUT
R
