Agilent 4155B/4156B User’s Guide Vol.2, Edition 5 5-17
Analyzing Measurement Results
Manual Analysis
If it seems that only one cursor is displayed, the cursors are at the same location.
When regression lines are displayed and when ON is set in the LINE PARAMETER
field on the DISPLAY: DISPLAY SETUP screen, the X and Y intercepts and
gradient of selected line are also displayed in the plotting area.
To turn off the line intercept and gradient display
Select DISPLAY SETUP primary softkey, then set LINE PRMTRS secondary
softkey to OFF.
To turn off the data variable display area
Use the following procedure:
1. Select DISPLAY SETUP primary softkey.
2. Set DATA VAR secondary softkey to OFF.
To move selected cursor to the selected marker position
Select CURSOR TO MARKER secondary softkey.
Example

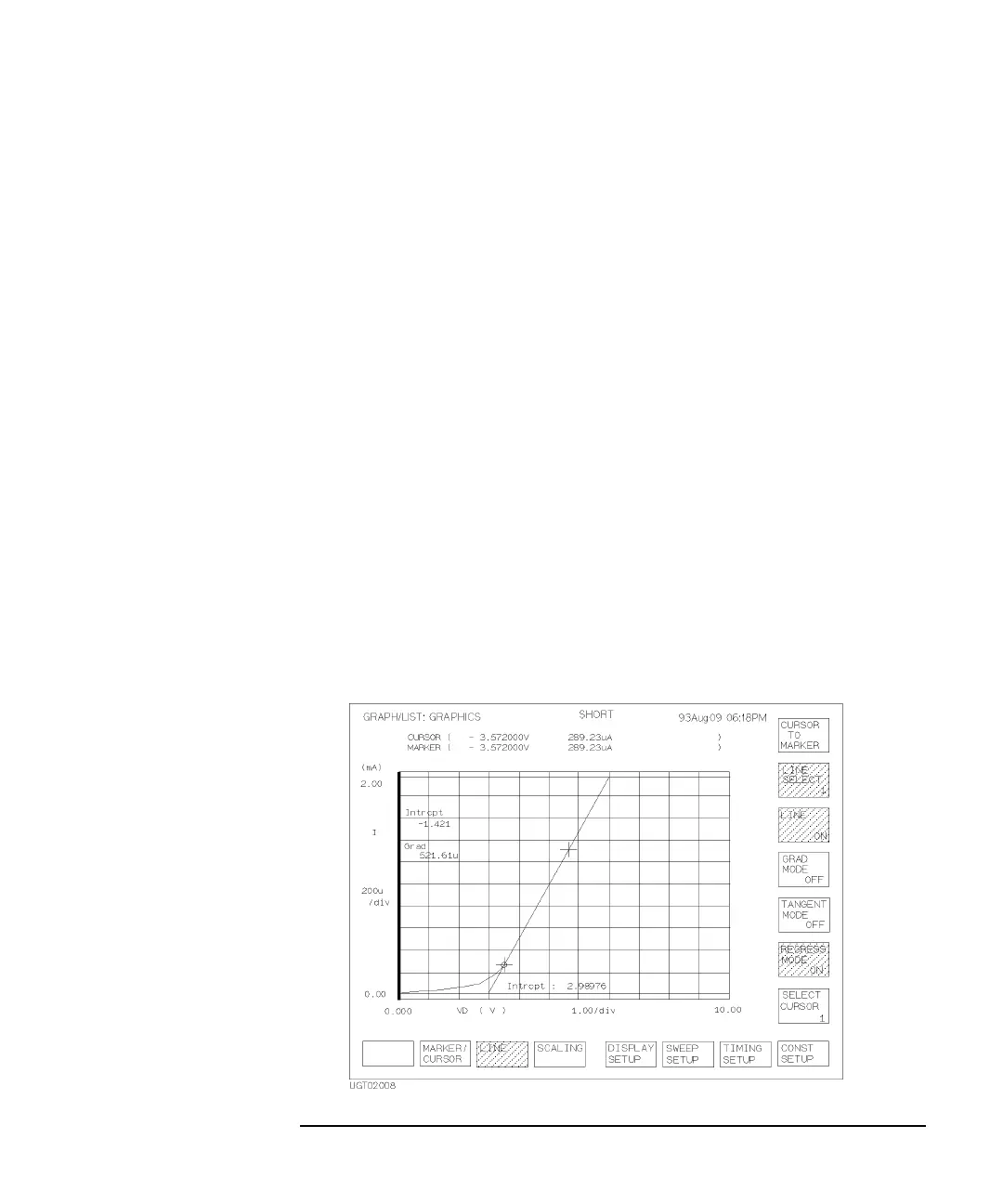

The following figure shows an example to draw a regression line for the specified
region.
