Agilent 4155B/4156B User’s Guide Vol.2, Edition 5 3-9
Measurement Functions
Stress Force Function

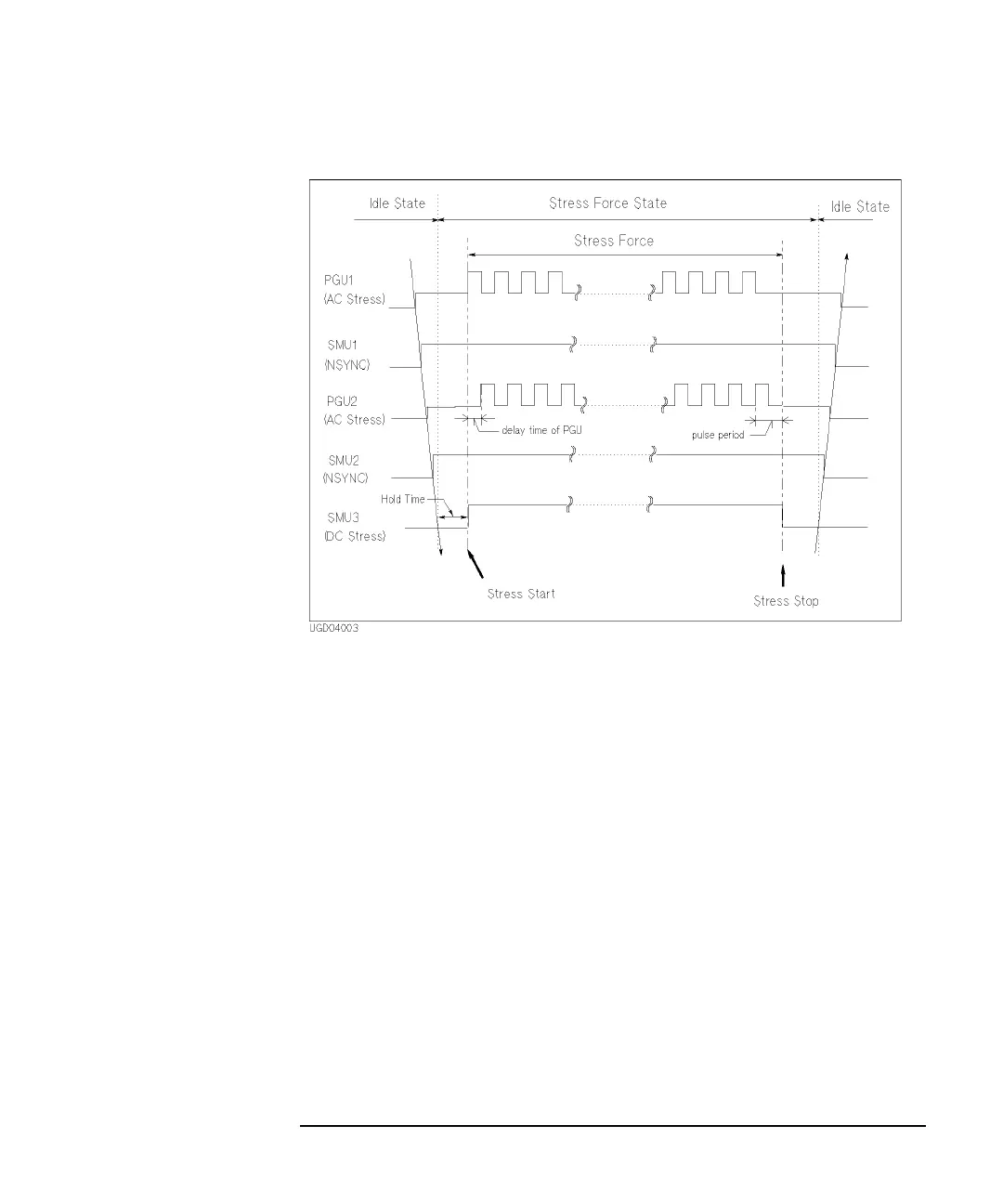

Figure 3-1 Example of the Stress Force Sequence
• output sequence from idle state to the stress state:
1. PGU1
2. SMU1
3. PGU2
4. SMU2
5. SMU3
• stress force sequence (in the stress force state):
The stress force channels (PGU1, PGU2, and SMU3) start stress and stop stress
at the same time.
• output sequence from stress state to the idle state:
1. SMU3
2. SMU2
3. PGU2
4. SMU1
5. PGU1
