Power Measurement How to Measure Power

102 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

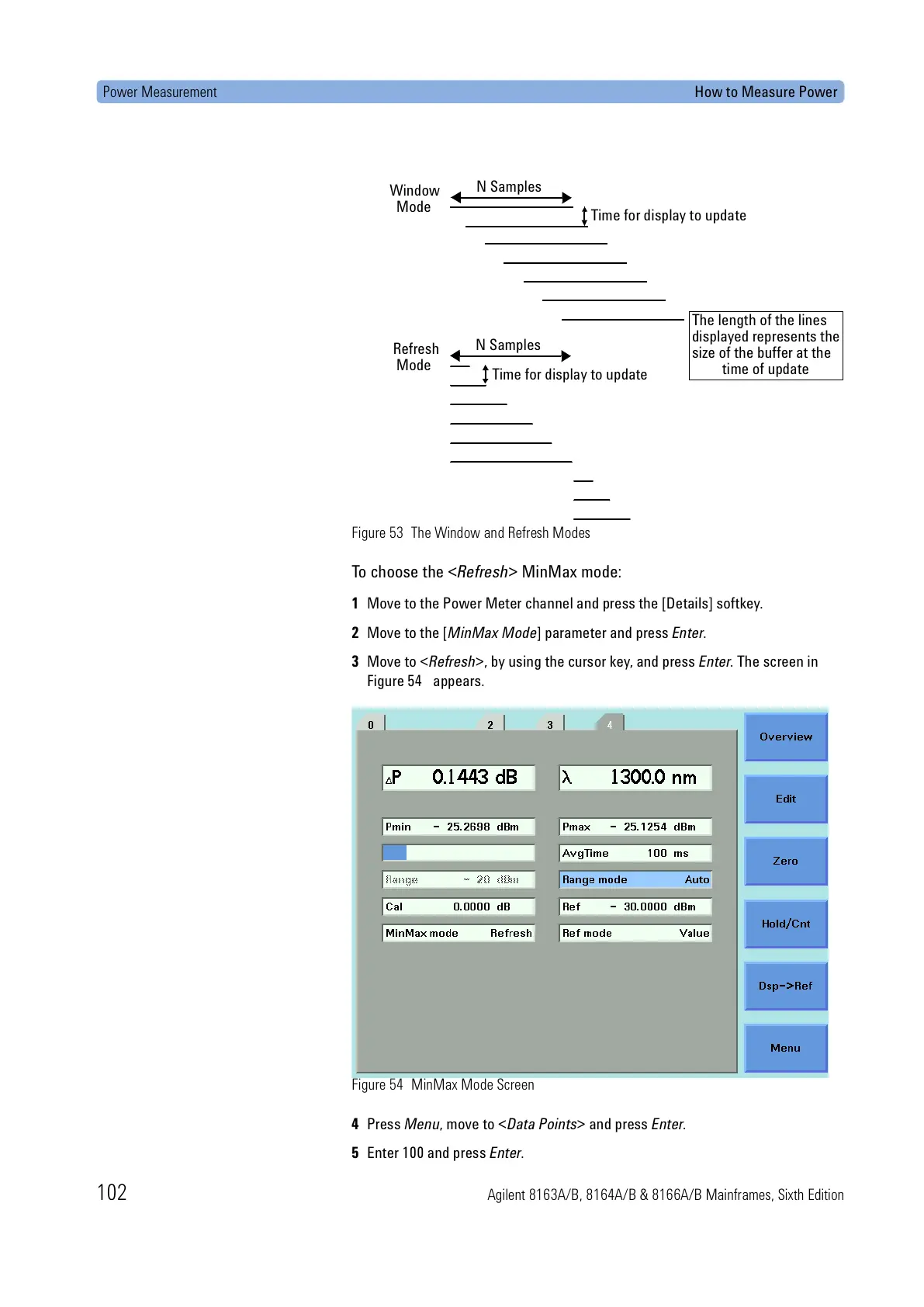

Figure 53 The Window and Refresh Modes

To choose the <Refresh> MinMax mode:

1 Move to the Power Meter channel and press the [Details] softkey.

2 Move to the [MinMax Mode] parameter and press Enter.

3 Move to <Refresh>, by using the cursor key, and press Enter. The screen in

Figure 54 appears.

Figure 54 MinMax Mode Screen

4 Press Menu, move to <Data Points> and press Enter.

5 Enter 100 and press Enter.

Window

Refresh

N Samples

Time for display to update

The length of the lines

displayed represents the

size of the buffer at the

time of update

Mode
